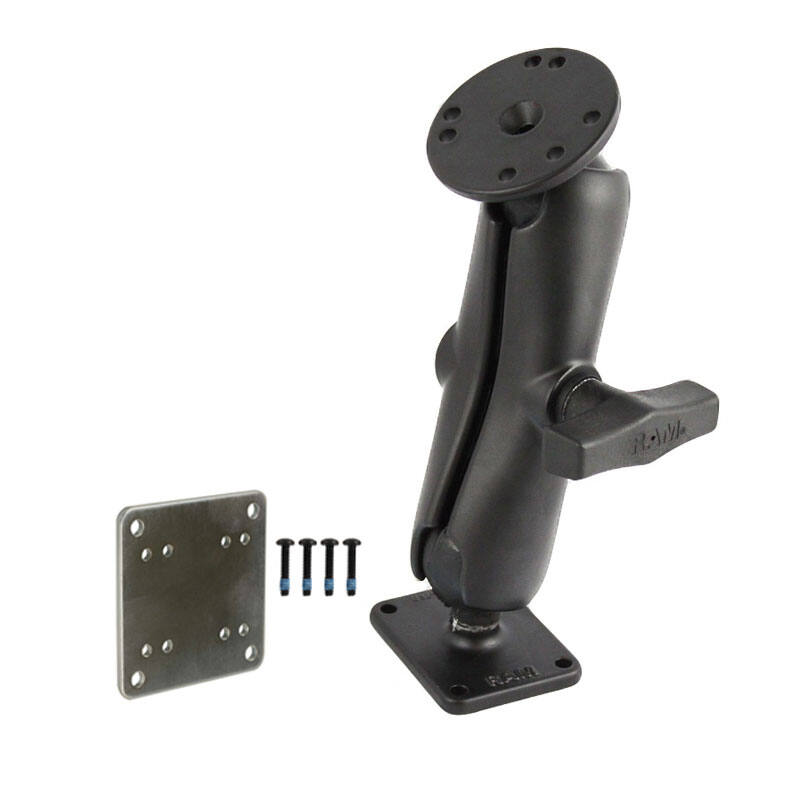

RAM-101U-225-XAT1 RAM® Drill-Down Dashboard Mount with Backing Plate (C Series)
The RAM-101U-225-XAT1 mounts to a dashboard or console using a steel backing plate for extra strength on thin panels, paired with a round AMPS base and a C-size medium double socket arm.
Key Features
Steel backing plate, 2.10" x 2.60", reinforces thin or flexible mounting surfaces and connects to RAM® components with the universal AMPS hole pattern
63mm (2.5") round base with the universal AMPS hole pattern
C size 1.5" RAM® rubber ball and medium-length double socket arm; ball-and-socket design allows near-infinite adjustment
Powder-coated marine-grade aluminium and steel construction
Supports up to 4.5kg (10 lb) for most applications
Backed by a lifetime warranty
What's Included
Round base, 63mm (2.5") diameter, with universal AMPS hole pattern

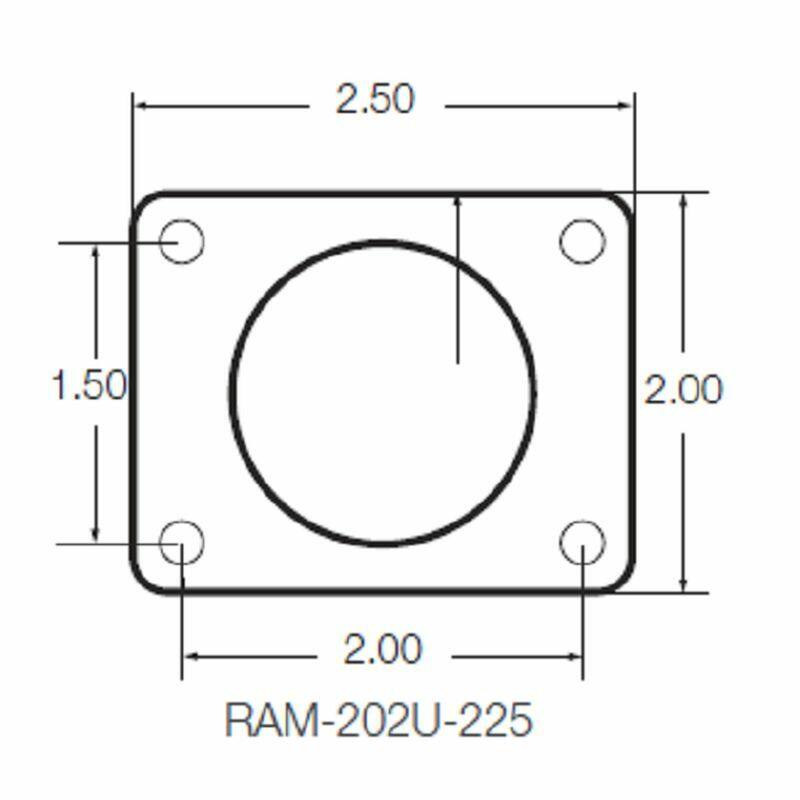

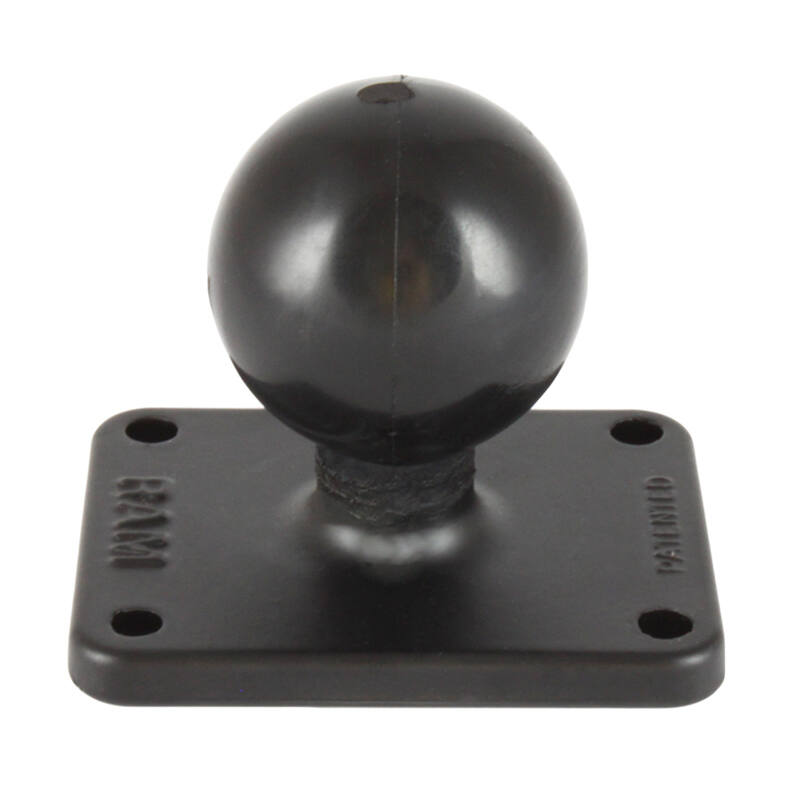

Rectangular base, 50.8mm x 63.5mm (2" x 2.5")

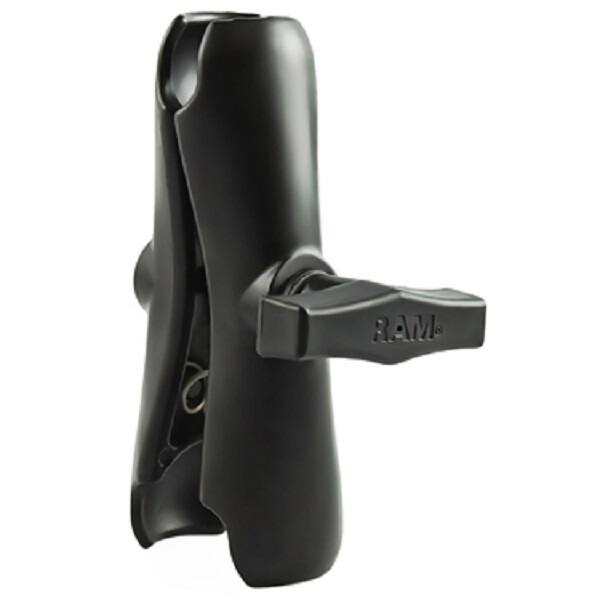

C-size medium double socket arm

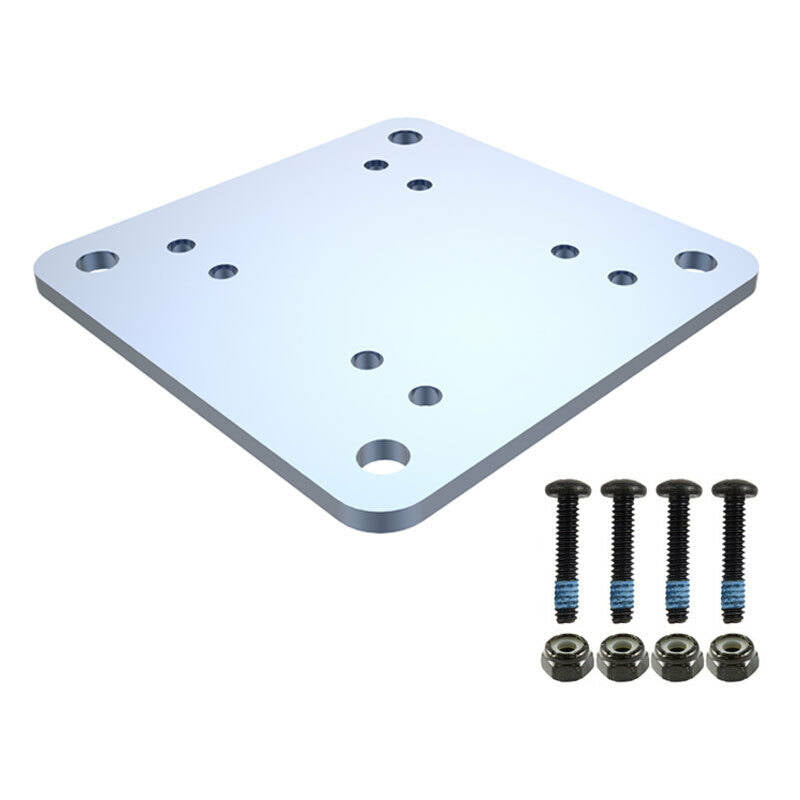

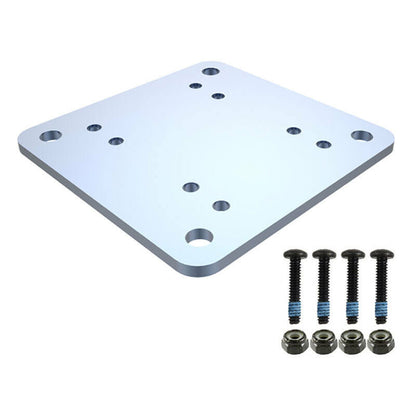

(1) 3" x 3" steel backing plate
(4) #10-24 x 1" thread-locking screws
Dimensions & Specifications
Overall height: 187mm (7.35")
Arm socket-to-socket length: 118mm (4.66")
Round plate hole pattern, 4-hole AMPS: 30mm x 38mm (1.181" x 1.496")
Weight capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use — up to 4.5kg (10 lb) for most applications
Weight: 0.667kg (1.47 lb)
Materials: marine-grade aluminium, steel
