RAM-201U-B - Short Arm - C Series (1.5" Ball)

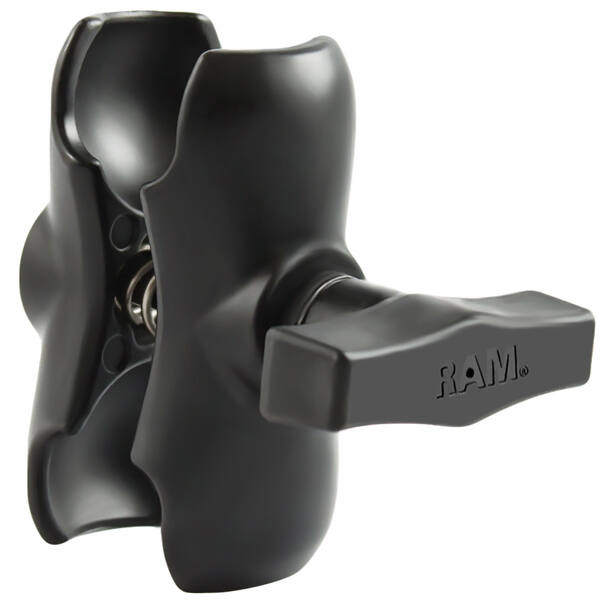

RAM-201U-B RAM® Double Socket Arm – C Size Short

The RAM-201U-B is the short arm in RAM's C Series (1.5") double socket range, connecting two 1.5" C Size RAM® ball components in a low-profile 90mm length. It is the shortest C Series arm, ideal when you want the device tucked in close to the base with minimal overhang.

Key Features

• Short, low-profile double socket arm (90mm overall)
• Attaches to any C Size RAM® ball component, including mounting bases and device holders

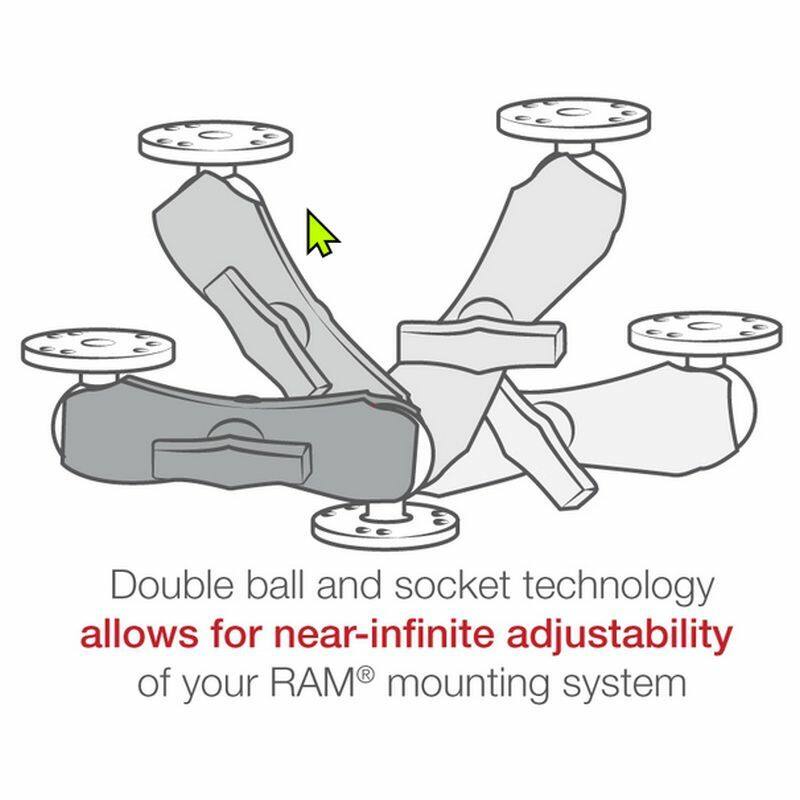

• Double ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

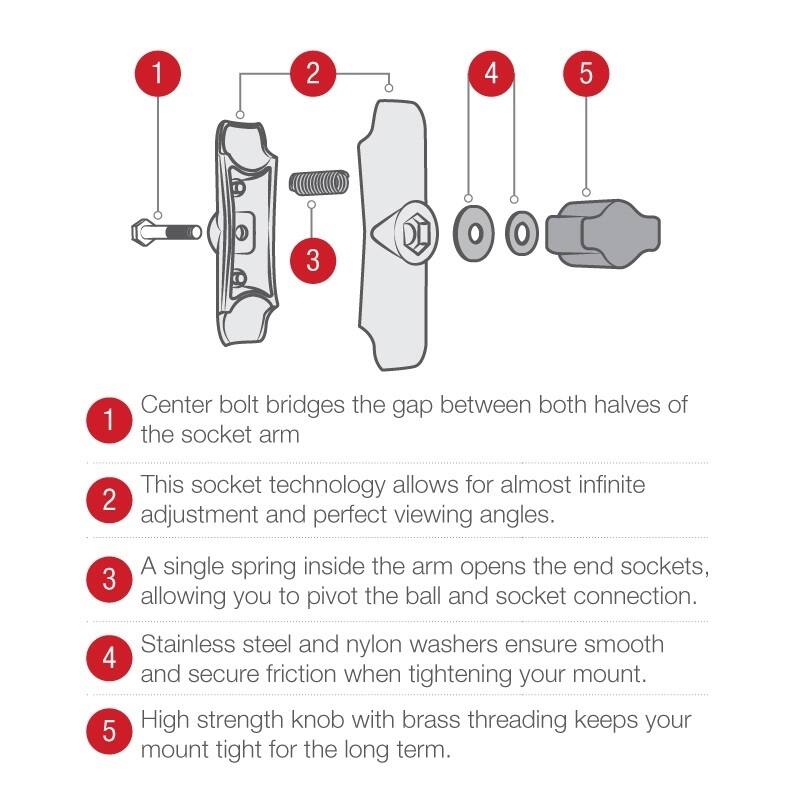

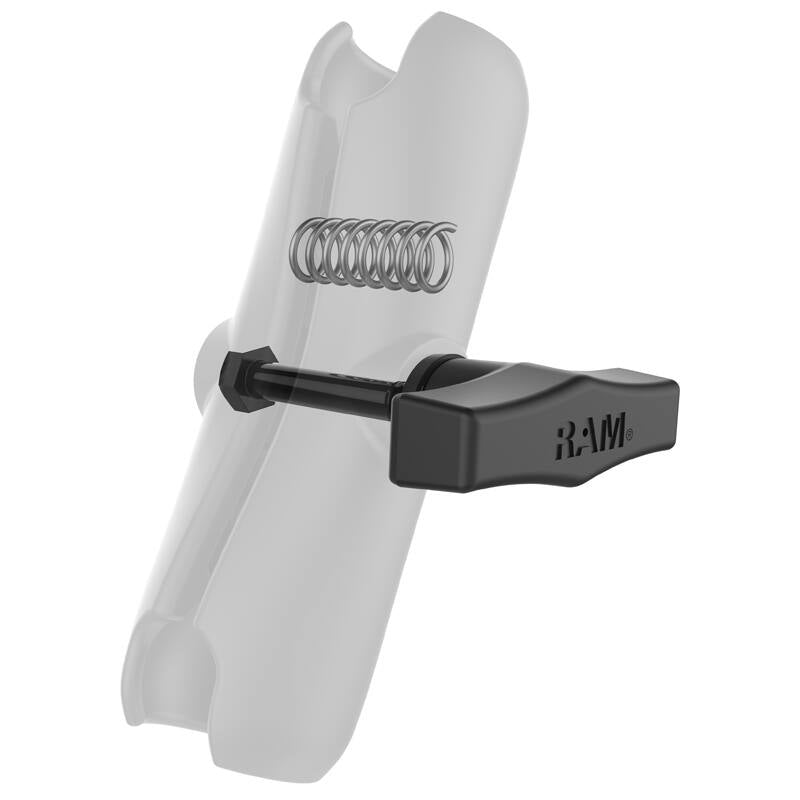

A single spring inside the arm opens the end sockets, letting you pivot each ball-and-socket connection for almost infinite adjustment and the perfect viewing angle.

Popular Bases For This Arm

Pair it with a C-size base such as the RAM-463-TRA1U aluminium Track Ball for drilled track, or the RAP-354-AAPRU side track base for kayak and boat side tracks.

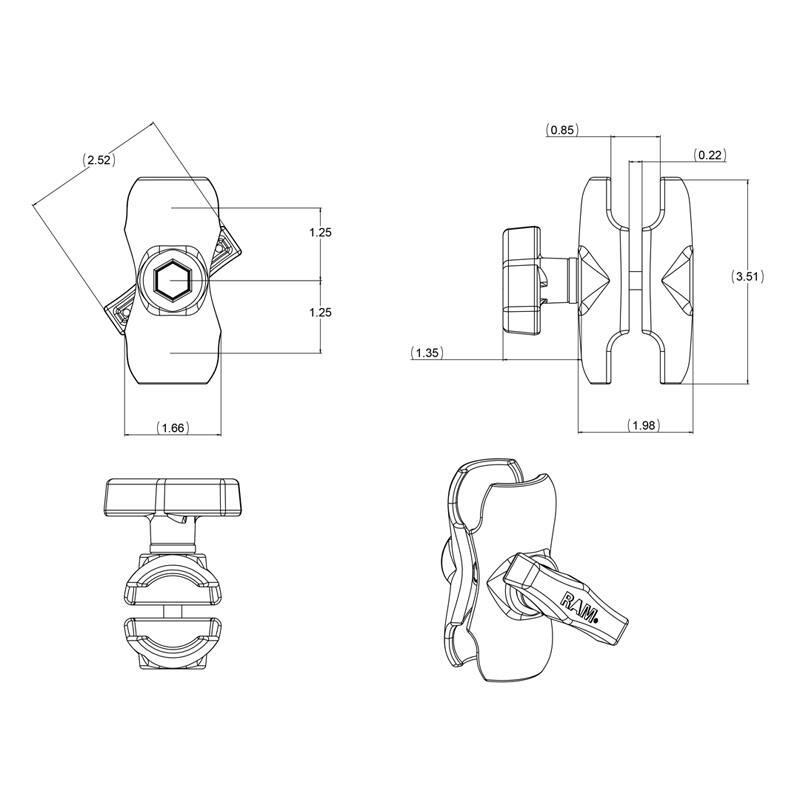

Dimensions & Specifications

• Overall length: 90mm (3.56")
• Socket-to-socket length: 63.5mm (2.5")
• Material: powder-coated marine-grade aluminium
• Ball size: 1.5" C Series rubber ball
• Weight: 236g (0.52 lb)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

Also Available In

This arm comes in three C Series lengths: short (this one, 90mm), medium (RAM-201U, 144.5mm) and long (RAM-201U-D, 232mm).
