RAM Forklift Overhead Guard Plate with Ball - D Series

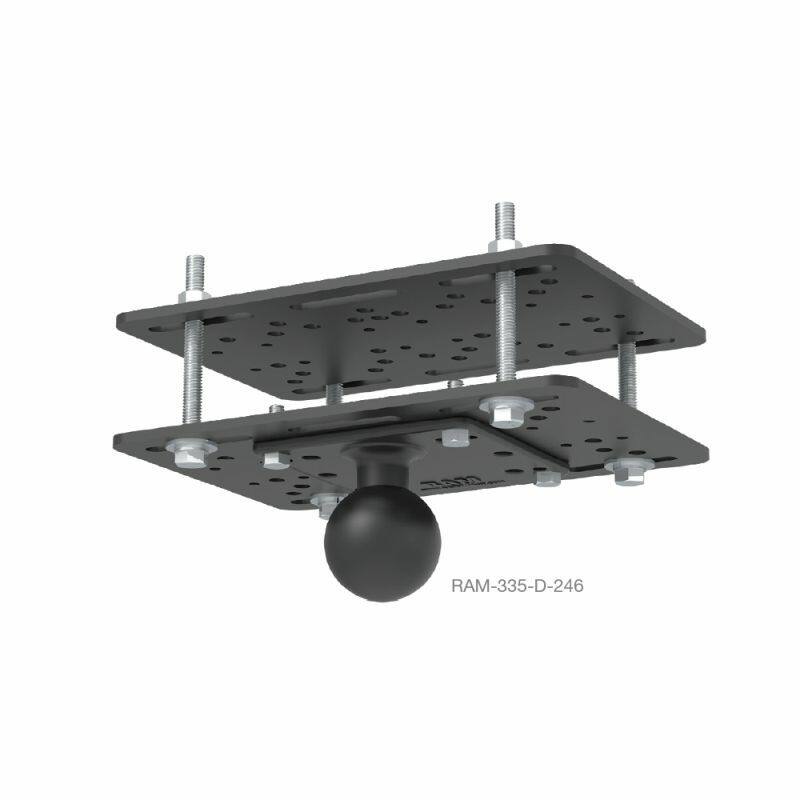

RAM-335-D-246 RAM® Lift Truck Overhead Guard Mount with D Size Ball

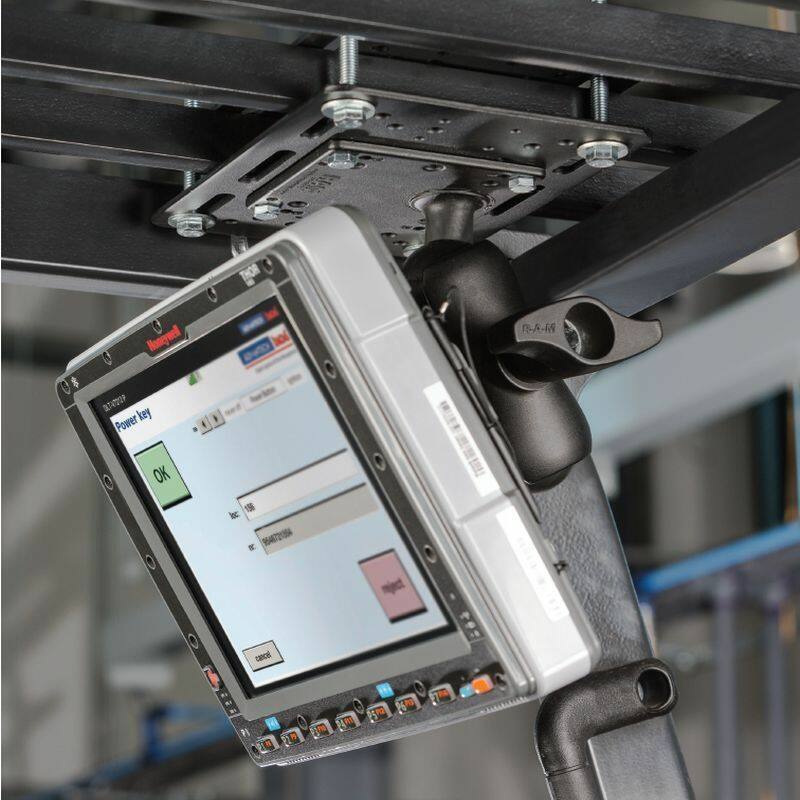

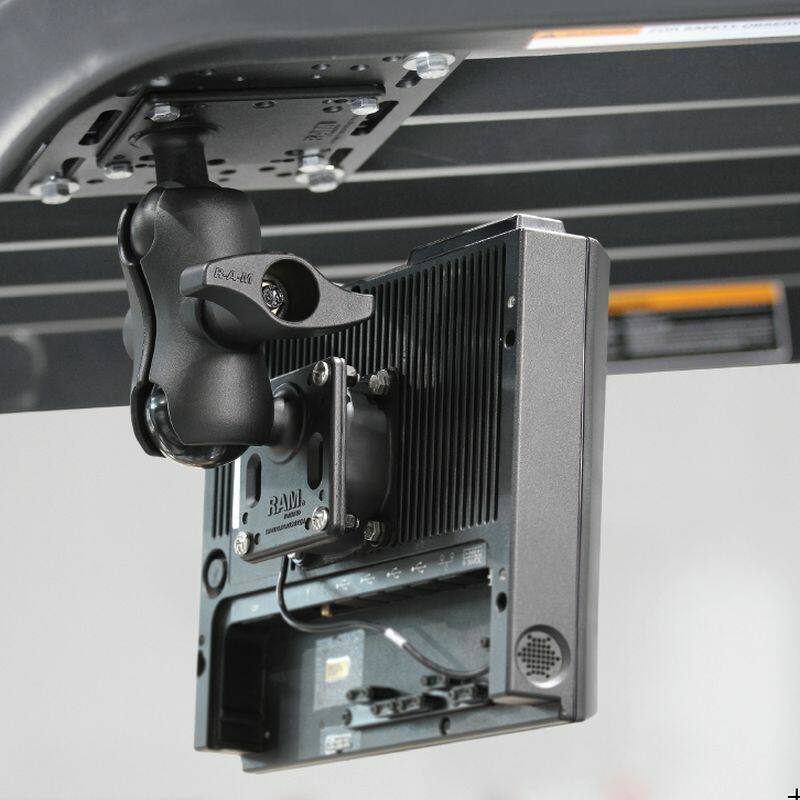

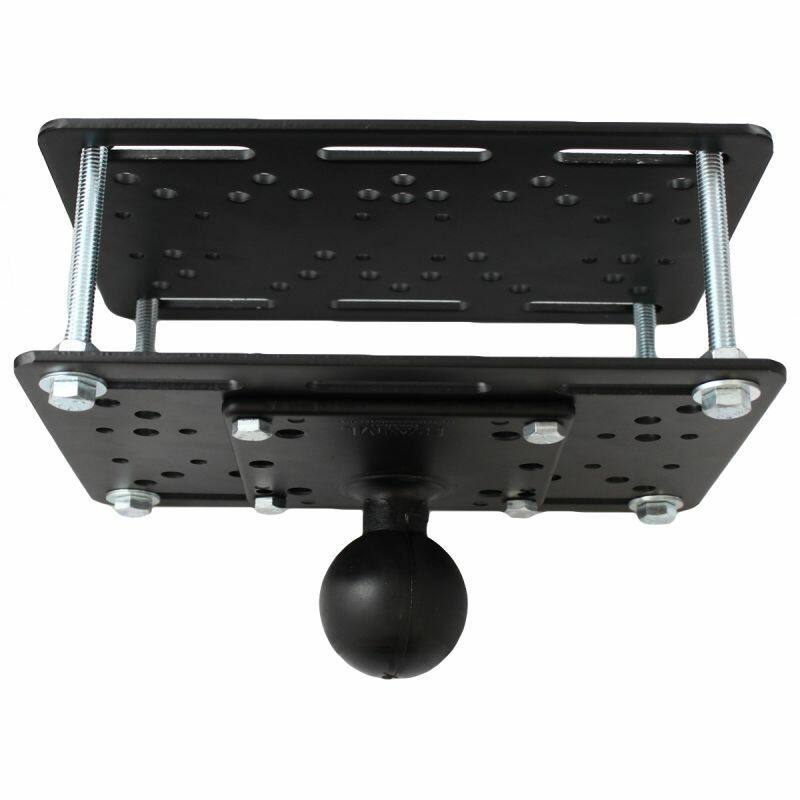

The RAM-335-D-246 gets a RAM ball onto almost any forklift overhead guard or cage without welding. Two identical stamped-steel plates sandwich the guard bar and bolt together, and an attached square VESA ball plate carries a D-size 2.25" ball ready for any D-size RAM arm.

Key Features

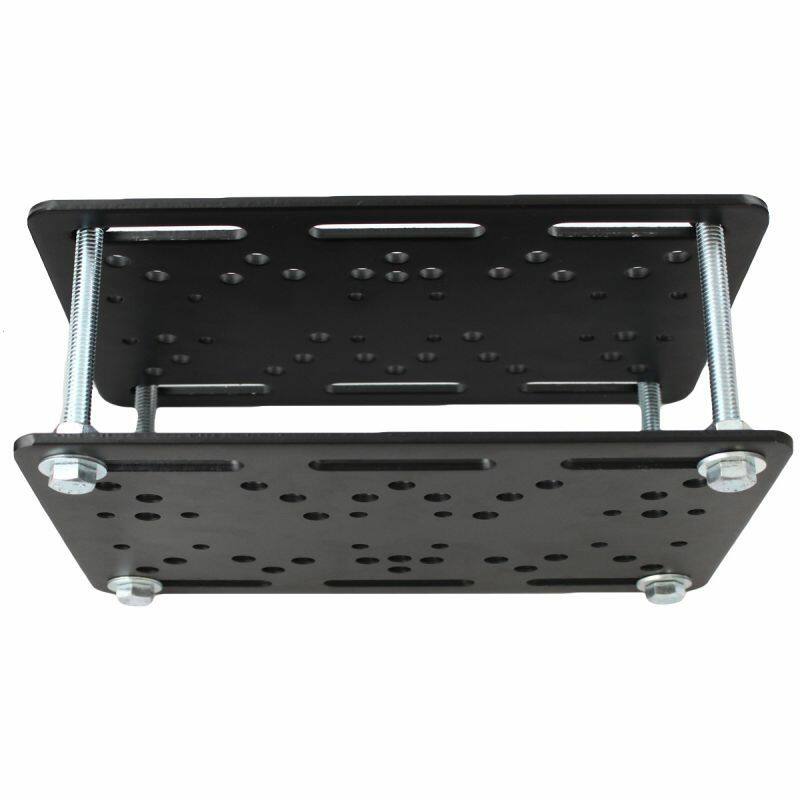

• Two stamped-steel plates with multiple hole and slot patterns to suit most overhead guards and cages
• No drilling or welding: sandwich the guard bar between the plates and bolt together

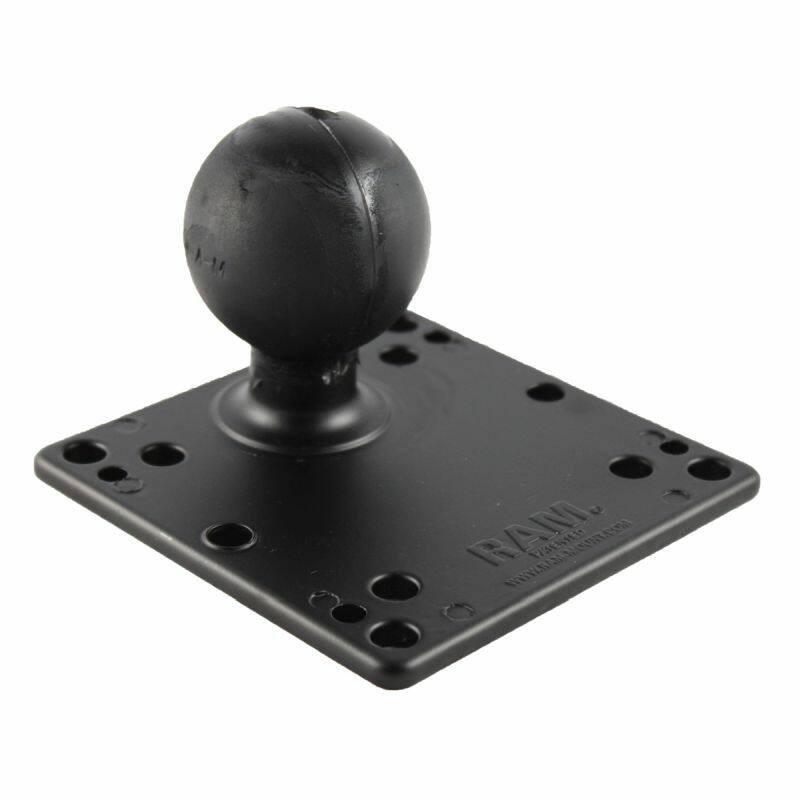

• Square VESA ball plate with a D size 2.25" ball, connects to any D size RAM arm
• Powder coated steel and marine-grade aluminium
• Backed by a lifetime warranty

Works With

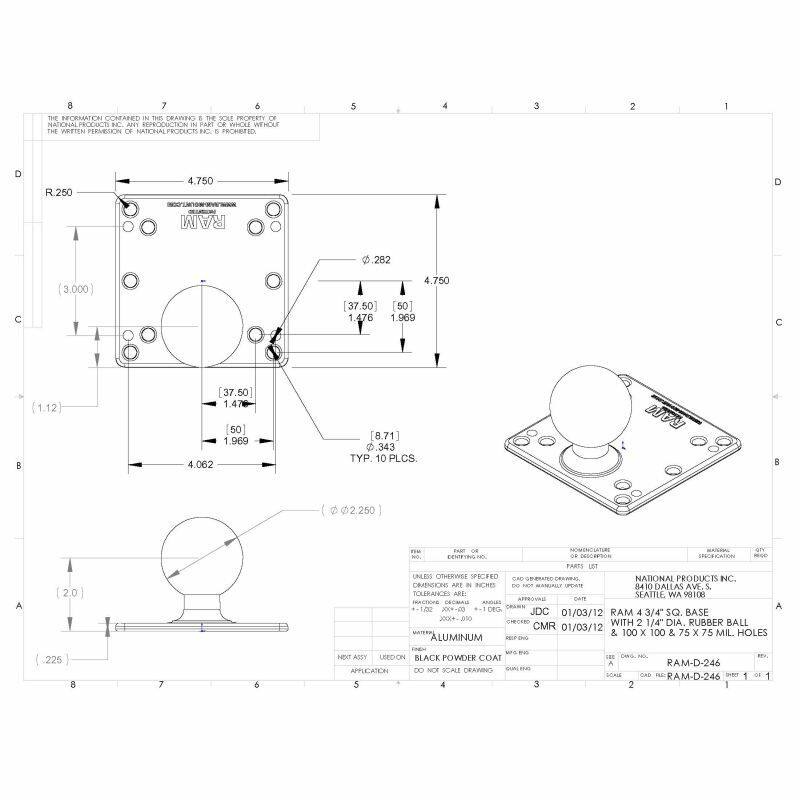

Most forklift and lift-truck overhead guards or cages, taking any D size (2.25") RAM double socket arm. The ball plate is the RAM-D-246U. For a smaller ball see the C size RAM-335-246; for a larger ball see the E size RAM-335-E-246.

Dimensions & Specifications

• Ball size: 2.25" (D size)

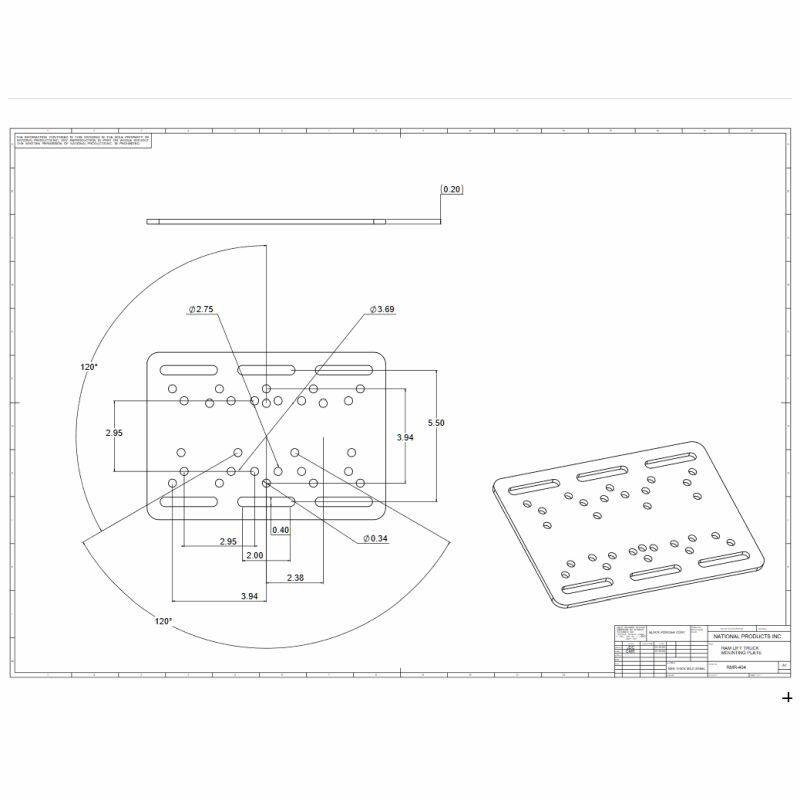

• Overhead guard plate hole patterns: AMPS 4-hole, 100x100mm VESA, 75x75mm VESA
• Hardware included: (4) 3/8"-16 x 4" zinc hex bolts, (4) 3/8"-16 zinc hex nuts, (4) 3/8" zinc lock washers, (8) 3/8" zinc flat washers, (4) #10-24 machine screws, (4) #10-24 Nylock nuts
• Material: powder coated steel and marine-grade aluminium
• Weight: 3.9kg (8.6 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use

FAQs

How does it attach without drilling? Fit the ball plate to one steel plate, then sandwich the overhead guard or cage bar between the two steel plates and tighten the supplied bolts. No drilling or welding needed.

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
