RAM Square 100mm VESA Base Plate - D Size 2.25" Ball

RAM-D-246U RAM® 100x100mm VESA Base Plate with D Size Ball

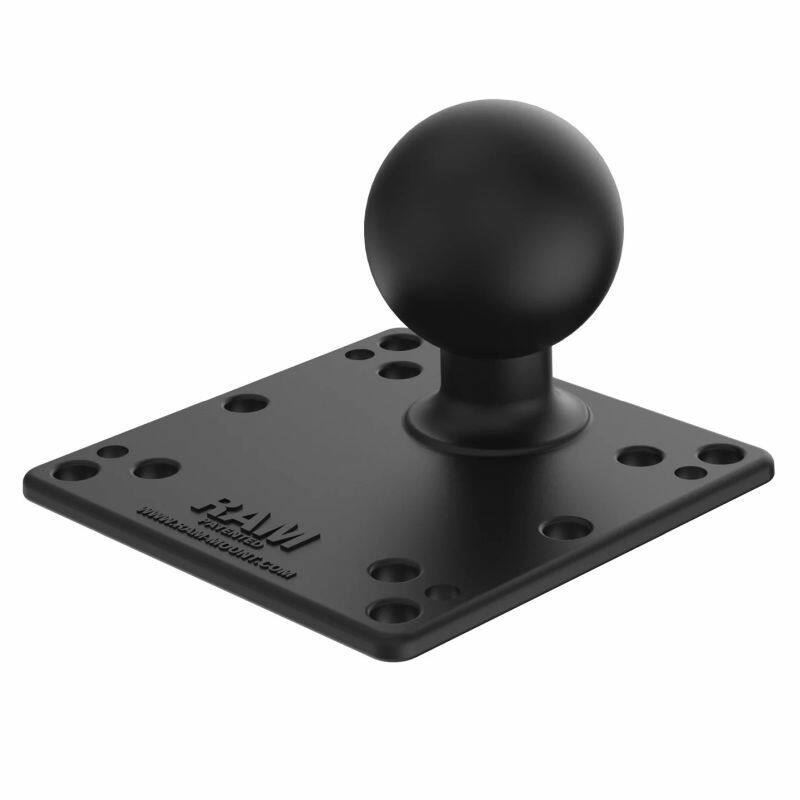

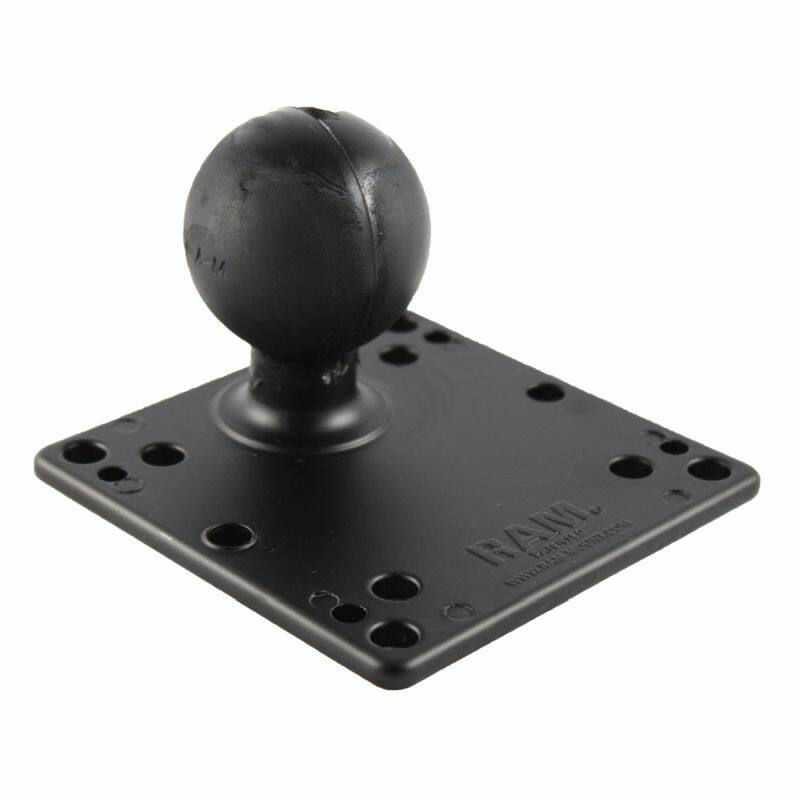

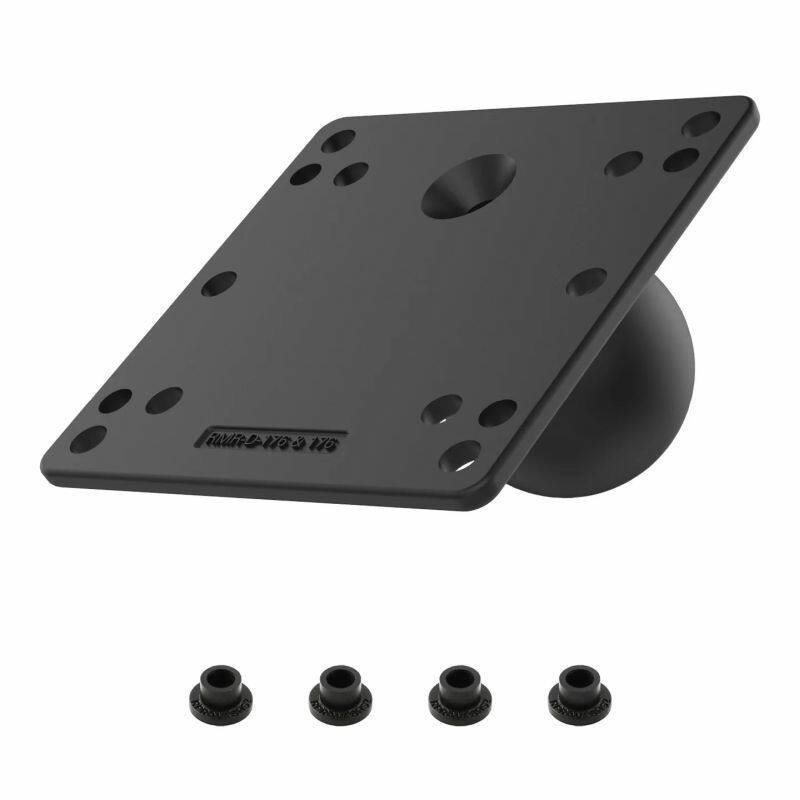

The RAM-D-246U is a 120.7mm (4.75") square VESA base plate fitted with a D size 2.25" rubber ball. It carries 100x100mm, 75x75mm and 100x50mm half-VESA hole patterns for a wide range of monitors, displays and cradles, and connects to any D size RAM double socket arm for near-infinite adjustment.

Key Features

• 120.7mm square plate with 100x100mm, 75x75mm and 100x50mm half-VESA hole patterns
• D size 2.25" RAM rubber ball connects to any D size RAM double socket arm
• RAM ball-and-socket design gives near-infinite adjustability
• Powder coated, marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

Any D size (2.25") RAM double socket arm, and any device or display carrying a 100x100mm, 75x75mm or 100x50mm VESA pattern. For a smaller ball see the C size RAM-246U; for a larger ball see the E size RAM-E-246U.

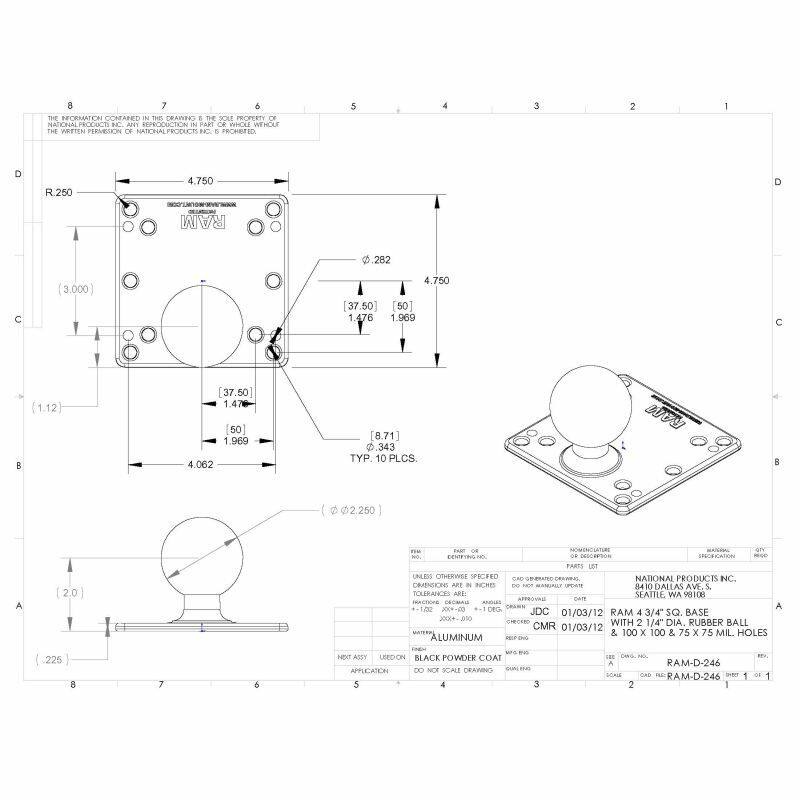

Dimensions & Specifications

• Plate size: 120.7 x 120.7mm (4.75" x 4.75")

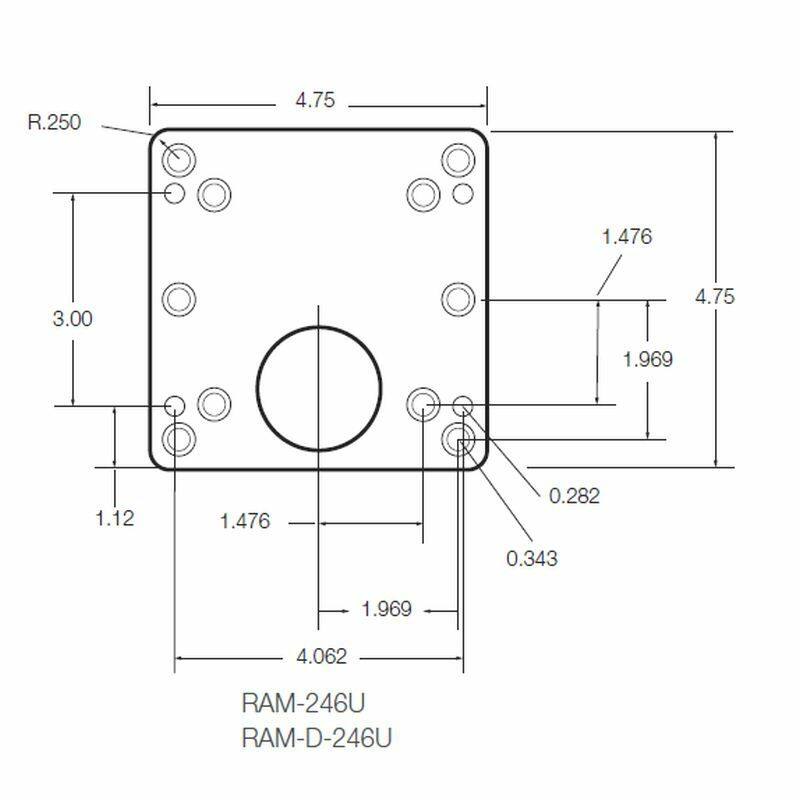

• Hole patterns: 100x100mm VESA, 75x75mm VESA, 100x50mm half-VESA
• Ball size: 2.25" (D size)
• Material: powder coated marine-grade aluminium
• Weight: 404g (0.89 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
