RAM Square 75mm VESA Base Plate with 76mm Clamp Base - (C Series)

RAM-2461-247U-3 RAM® 75x75mm VESA Mount with 76mm Square Post Clamp (C Size)

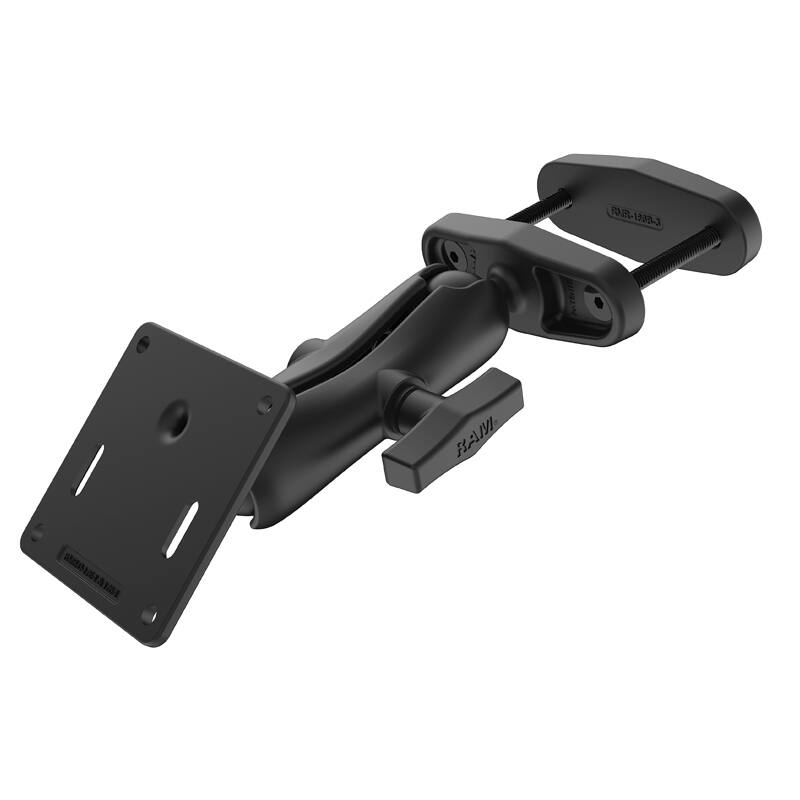

The RAM-2461-247U-3 mounts a 75mm VESA device to a square post, beam, or bar up to 76.2mm (3") wide. It pairs a 92mm square 75mm VESA plate and a medium C-size double socket arm with a 76mm (3") square post clamp that bolts shut around the rail.

Key Features

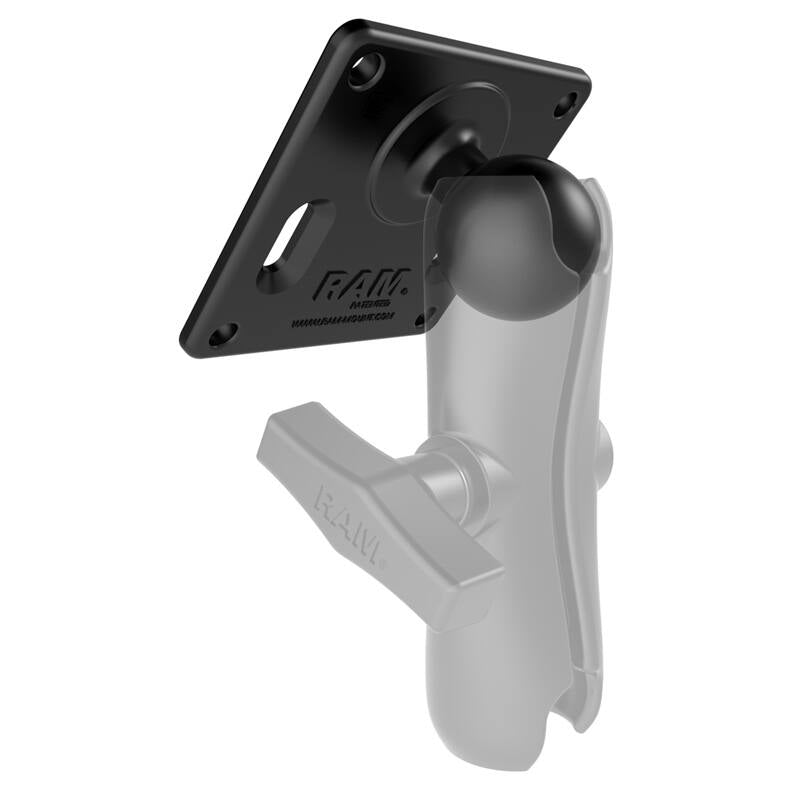

• 92mm square VESA plate with a 75x75mm hole pattern

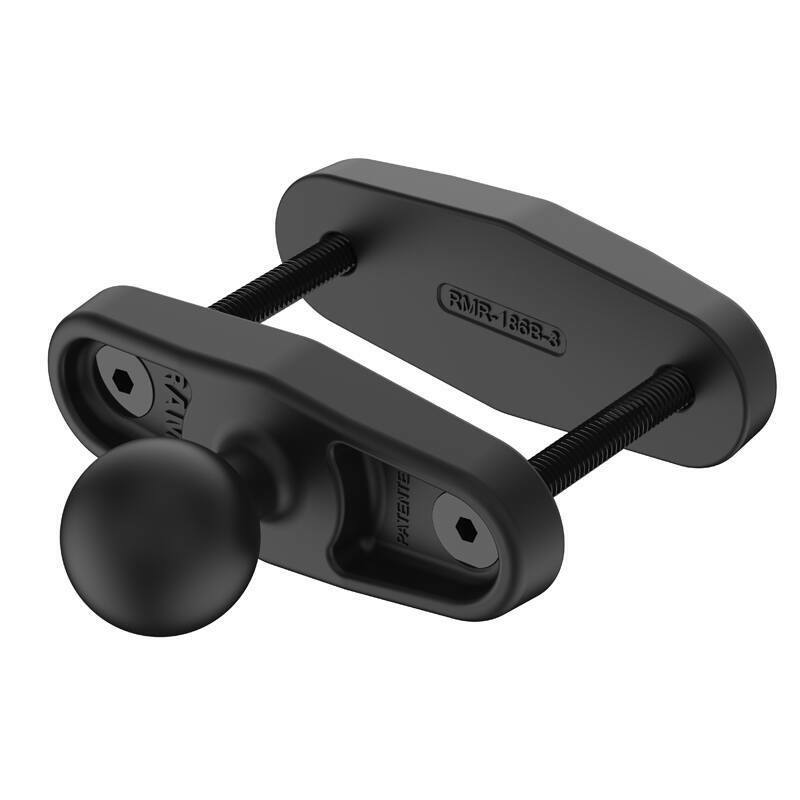

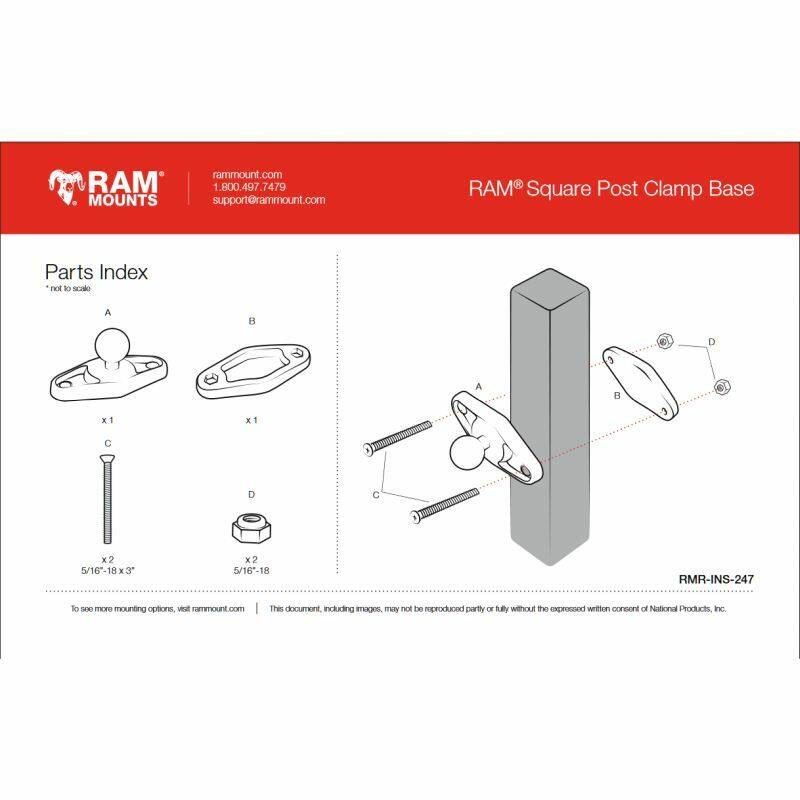

• 76mm (3") square post clamp, clamps rails up to 76.2mm (3") wide, bolts shut with the included nuts and bolts
• Medium C size 1.5" double socket arm; ball-and-socket joints dampen shock and vibration
• Powder coated, marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

Mounting a 75x75mm VESA device to a square post, mast, or bar up to 76.2mm (3") wide. Built from the RAM-2461U VESA plate, a RAM-201U arm and a RAM-247U-3 clamp base. For wider rails see the 100mm RAM-2461-247U-4; for narrower see the 50mm RAM-2461-247U-2.

Dimensions & Specifications

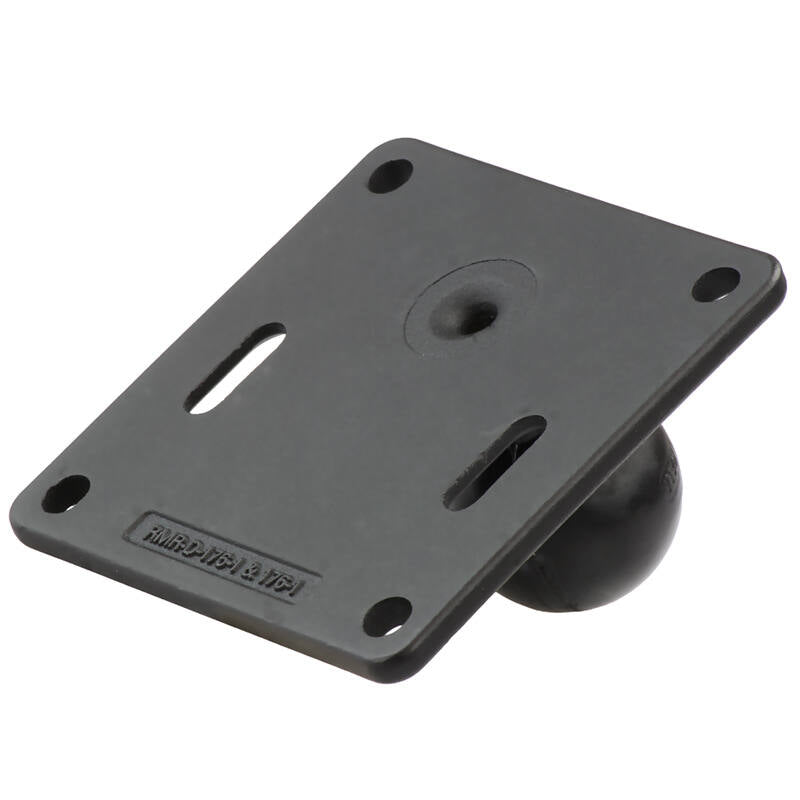

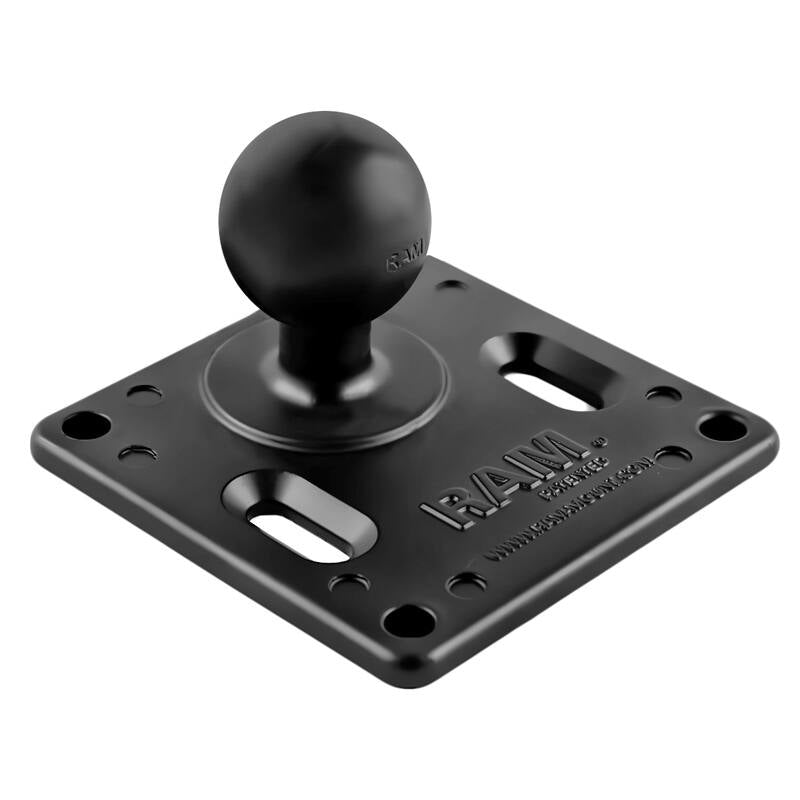

• Square plate: 92mm x 92mm with a 75x75mm VESA pattern

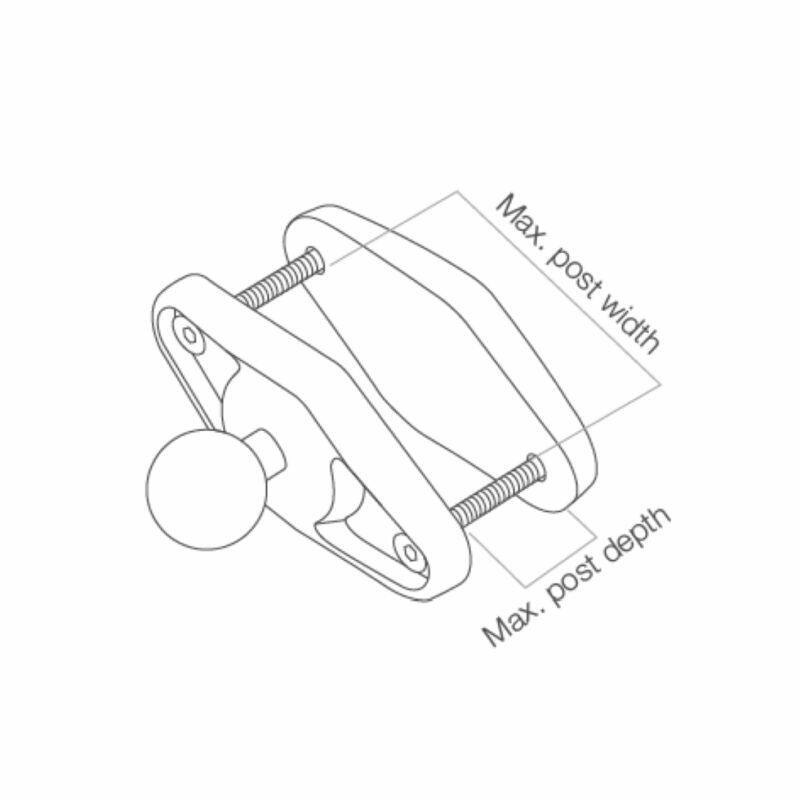

• Clamp maximum width: 76.2mm (3")
• Arm: 143mm (5.625") overall, 114mm (4.5") socket-to-socket
• Ball size: 1.5" (C size)
• Material: powder coated marine-grade aluminium
• Weight: 730g (1.61 lb)
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use

Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
