RAM Square 75mm VESA Base Plates with short double socket arm - C Series

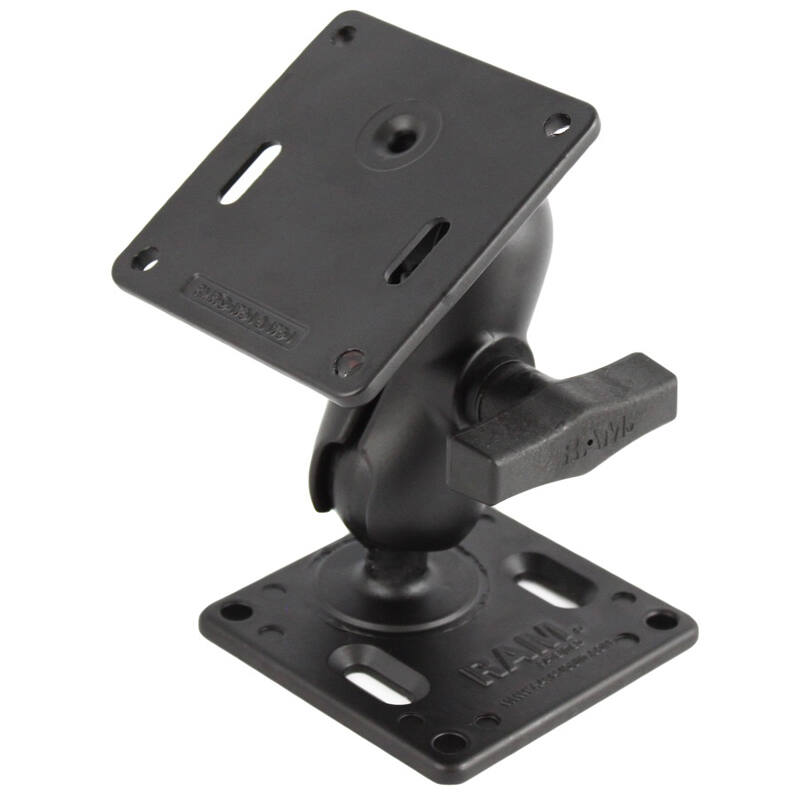

RAM-102U-B-2461 RAM® Double 75x75mm VESA Mount with Short Arm (C Size)

The RAM-102U-B-2461 joins two 92.1mm square 75x75mm VESA plates with a short double socket arm. Use it to mount a 75mm VESA device to a 75mm VESA surface, screen, or panel, with near-infinite adjustment between the two.

Key Features

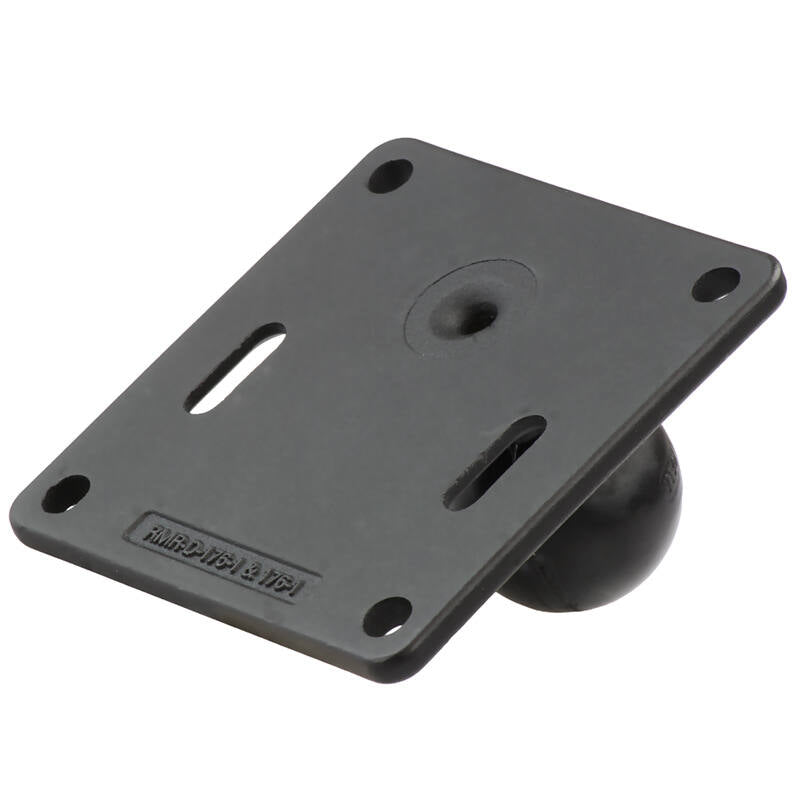

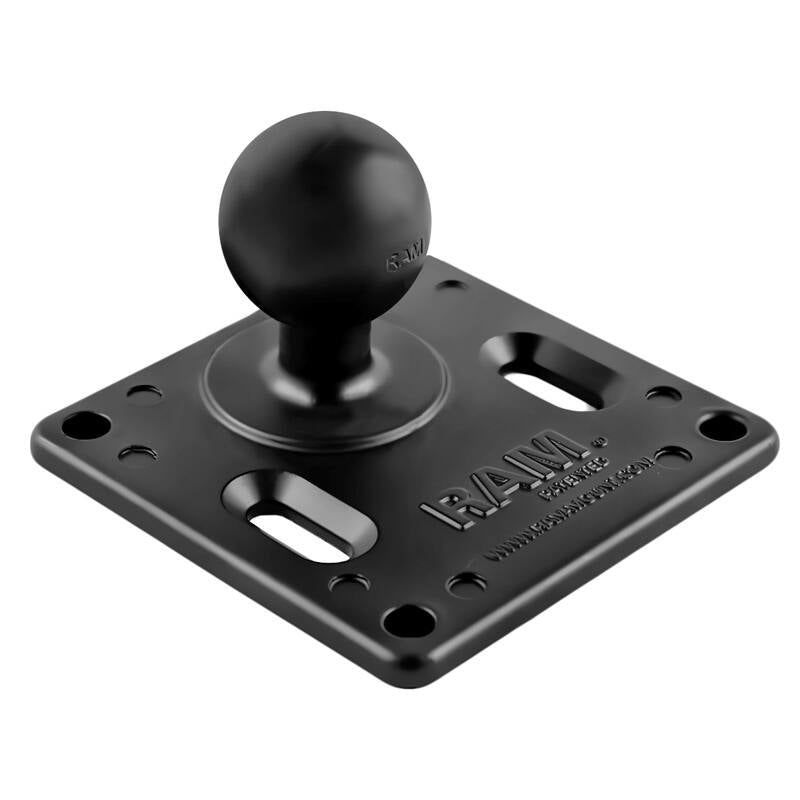

• Two 92.1mm square VESA plates, each with a 75x75mm hole pattern
• Short C size 1.5" double socket arm with ball-and-socket joints at both ends
• Powder coated, marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

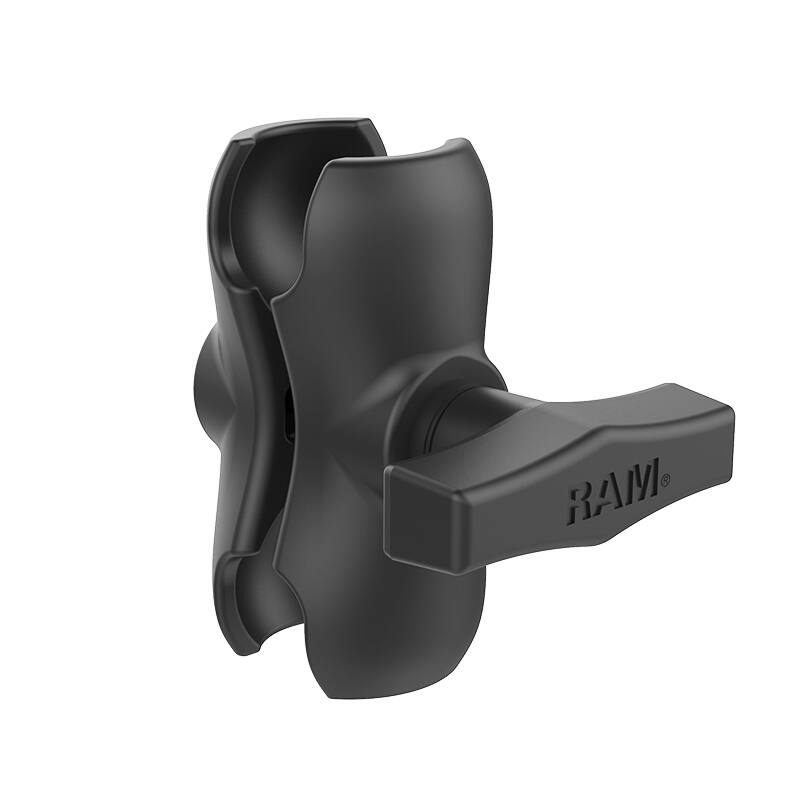

Connecting two items that each carry a 75x75mm VESA pattern. Built from two RAM-2461U VESA plates and a RAM-201U-B short arm. For a longer reach see the RAM-102U-D-2461.

Dimensions & Specifications

• Overall height: 133mm (5.225")

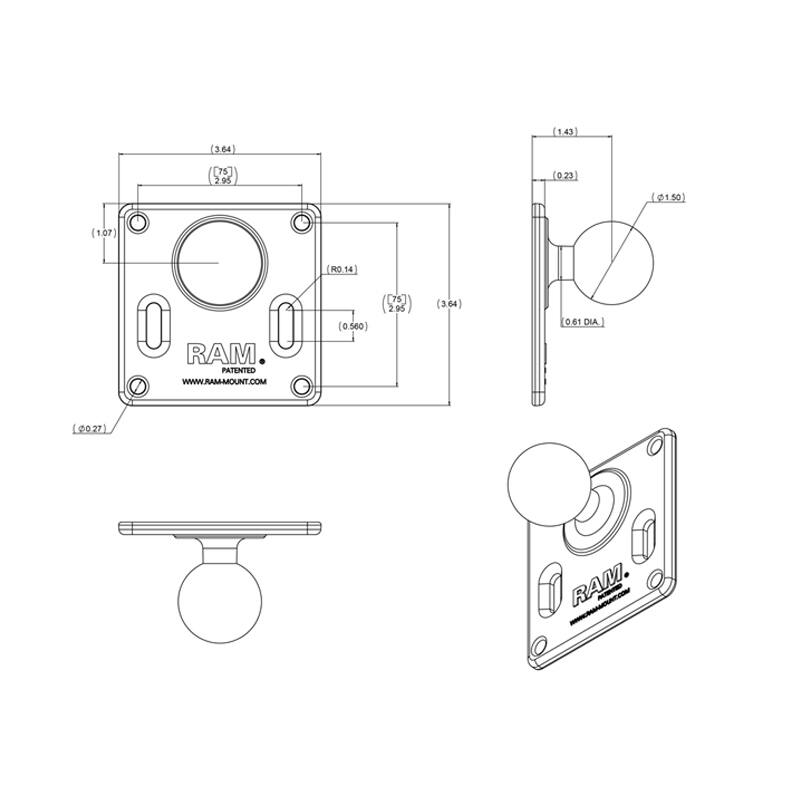

• Plates: 92mm x 92mm (3.625" x 3.625"), 75x75mm VESA pattern each

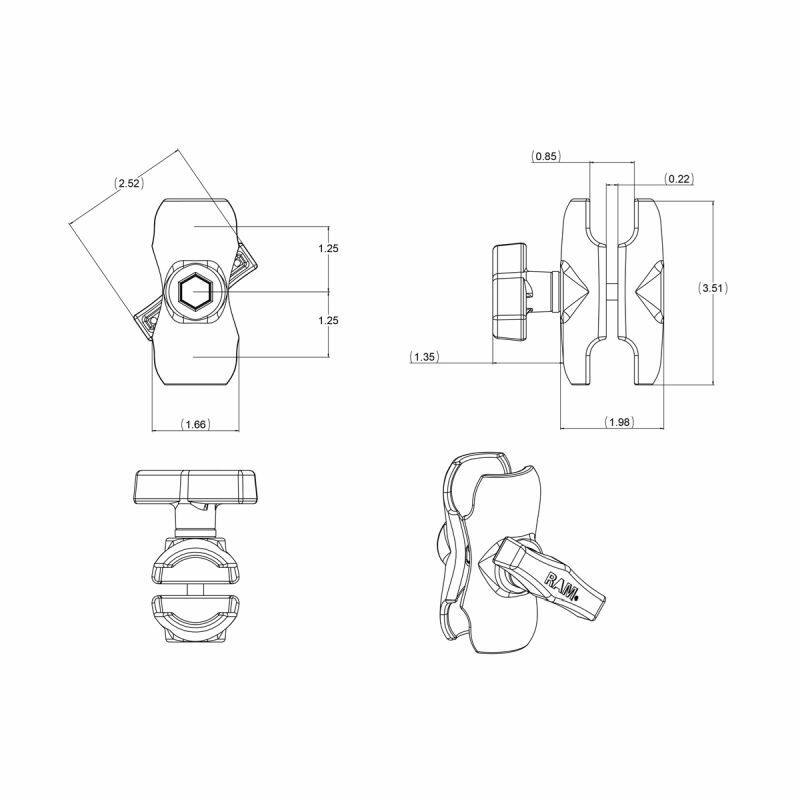

• Arm: 90mm (3.56") overall, 63.5mm (2.5") socket-to-socket
• Ball size: 1.5" (C size)
• Material: powder coated marine-grade aluminium
• Weight: 576g (1.27 lb)
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use
