RAM Square 75mm VESA Base Square Plate - D Series (2.25" Ball)

RAM-D-2461U RAM® 75x75mm VESA Base Plate with D Size Ball

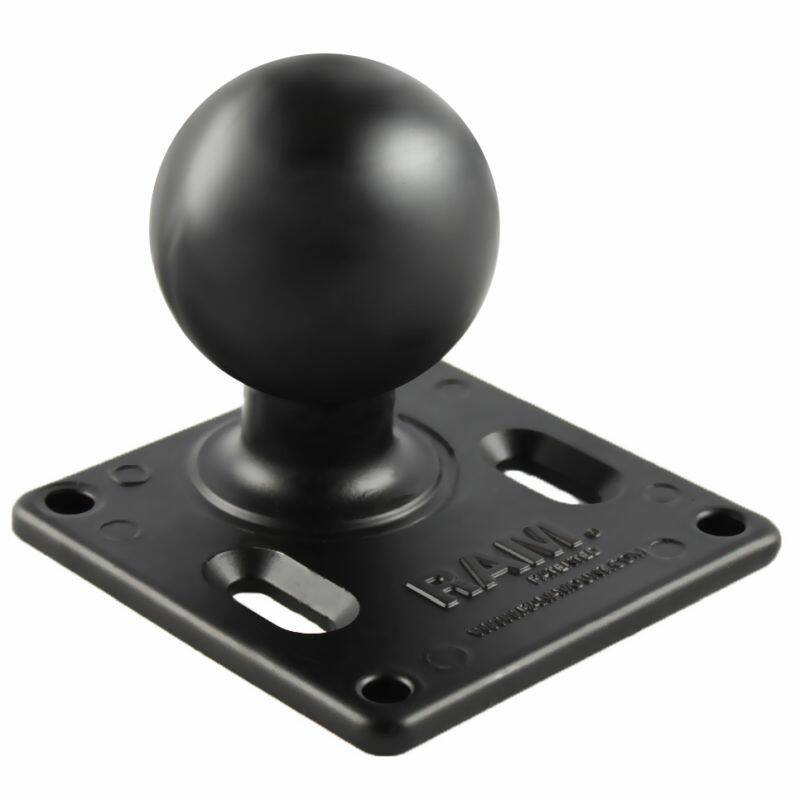

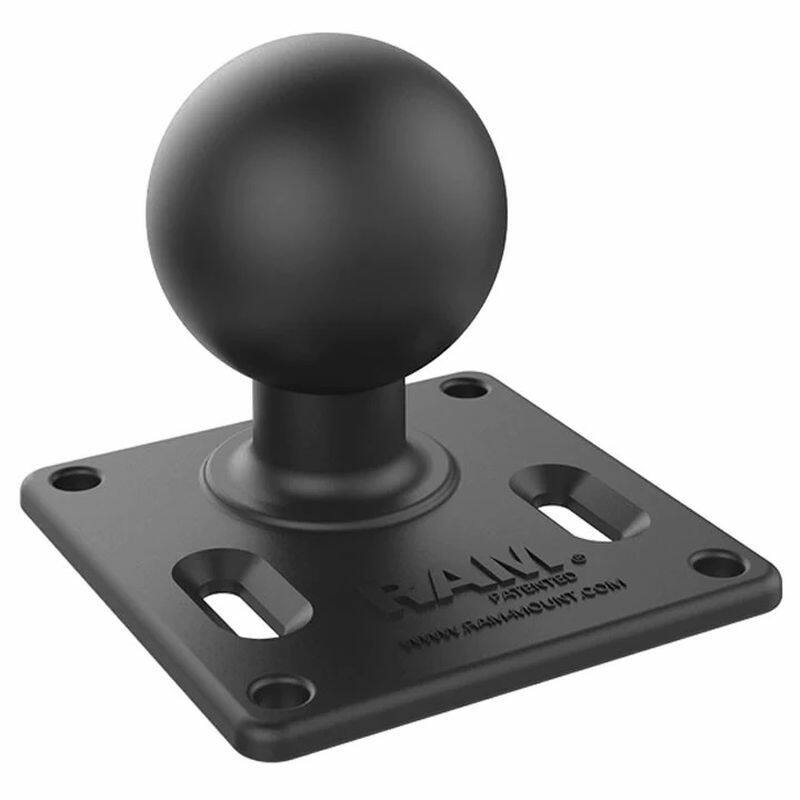

The RAM-D-2461U is a 92mm square VESA base plate fitted with a D size 2.25" rubber ball. It carries a 75x75mm VESA hole pattern, connects to any D size RAM double socket arm, and is also sold as the Honeywell RT10-MNT-RAM.

Key Features

• 92mm square plate with a 75x75mm VESA hole pattern
• D size 2.25" (57mm) RAM rubber ball connects to any D size RAM double socket arm
• Ball sits 22.3mm in from the centre of one edge
• RAM ball-and-socket design gives near-infinite adjustability
• Powder coated, marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

Any D size (2.25") RAM double socket arm, and devices carrying a 75x75mm VESA pattern. Commonly used with rugged tablets and terminals including the MobileDemand xTablet T8600, Glacier Computer Ridgeline, Routeware DMS 5000 and Honeywell RT10. Device-specific cradles for these units are supplied by their manufacturers. For the same plate with a smaller C size ball, see the RAM-2461U.

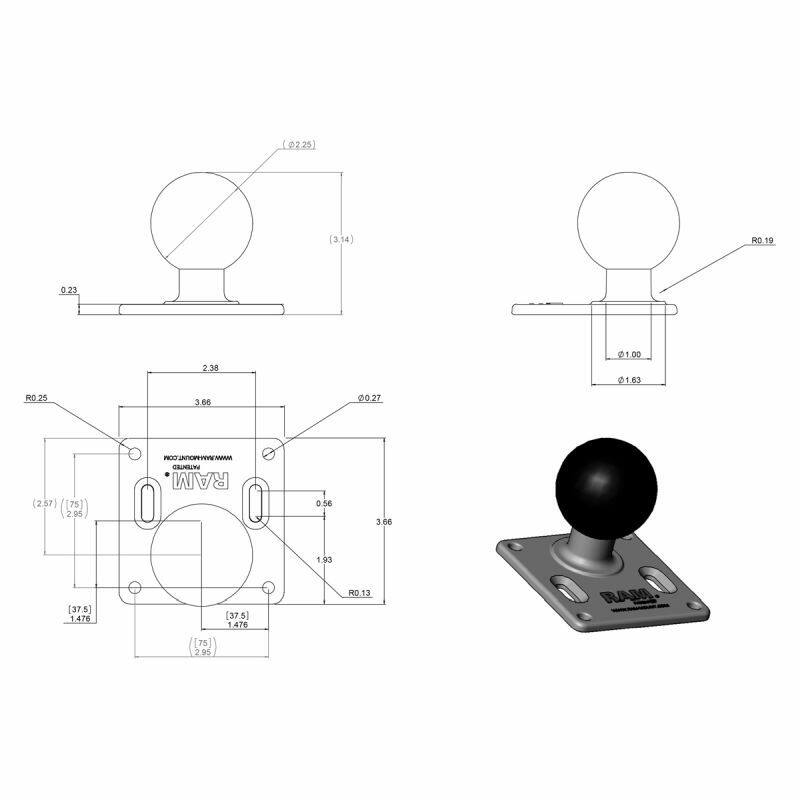

Dimensions & Specifications

• Plate size: 92 x 92mm (3.625" x 3.625")
• Hole pattern: 75x75mm VESA
• Ball size: 2.25" / 57mm (D size)
• Material: powder coated marine-grade aluminium
• Weight: 318g (0.7 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
