RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB8U

RAM-HOL-TAB8-CUPSU RAM® Tab-Tite™ End Cups for Apple iPad Pro 9.7 with Case

The RAM-HOL-TAB8-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for the Apple iPad Pro 9.7 (1st Generation) with a case. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable RAM® Tab-Tite™ end cups for the iPad Pro 9.7 (1st Generation) with case
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

Apple

• iPad Pro 9.7 (1st Generation) with Case

Dimensions & Specifications

• Fits devices (in their case) within: height 229 to 292mm (9" to 11.5"), width 162 to 211mm (6.38" to 8.31"), depth 3.3 to 28mm (0.13" to 1.12")
• Material: high-strength composite
• Weight: 113 grams (0.25 lb)

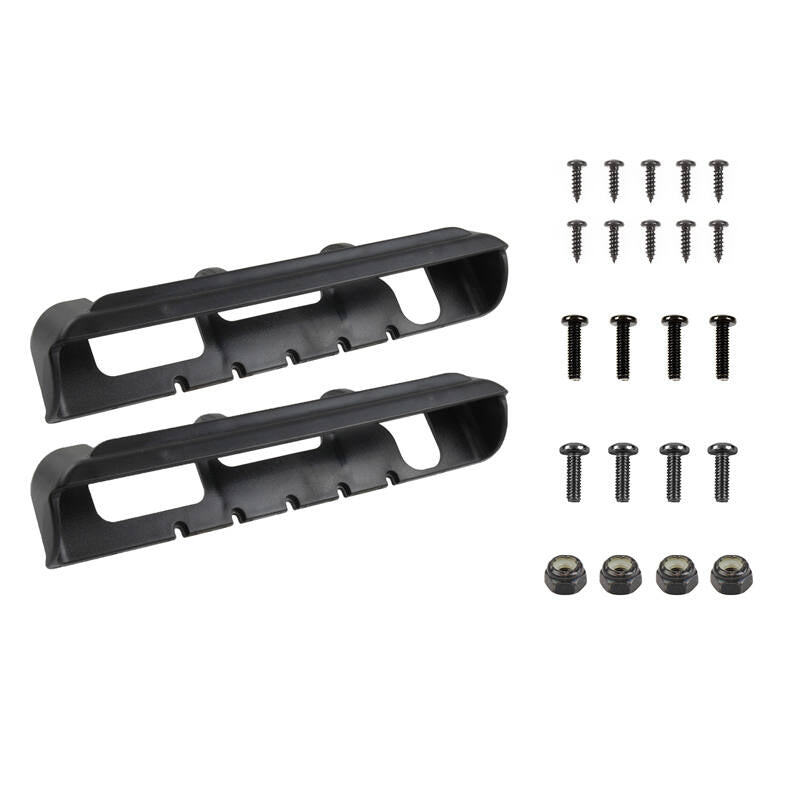

What's Included

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my tablet? Any tablet that sits within the dimensions above will fit. Measure your device in its case and compare.

Videos

Watch the RAM® Tab-Tite™ assembly video
