RAM-VP-SW2F-8-2461 RAM® Tele-Pole™ 8" Upper Pole Workstation Mount with 75x75mm VESA Plate

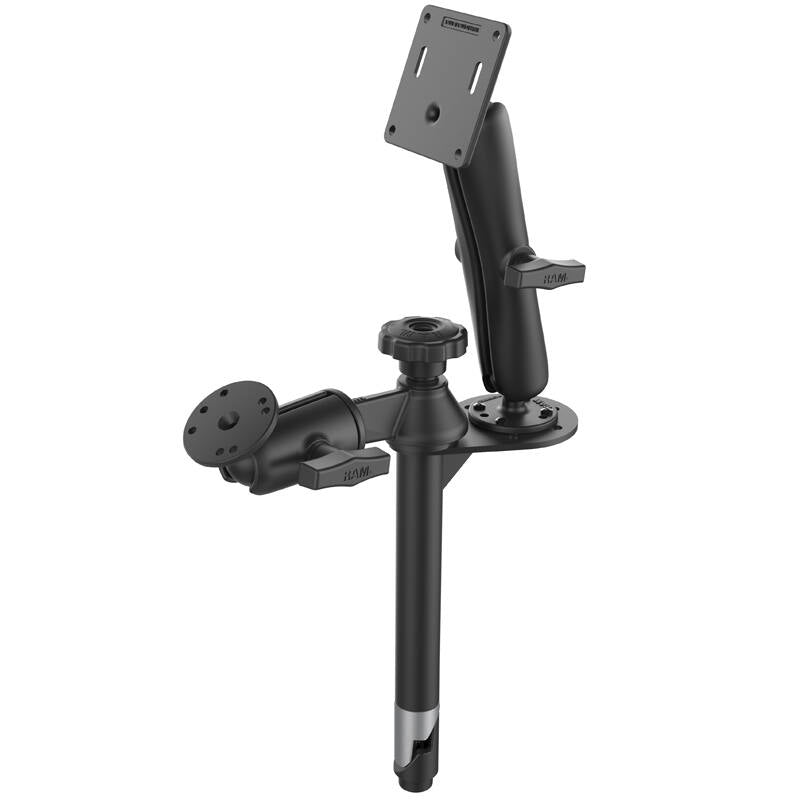

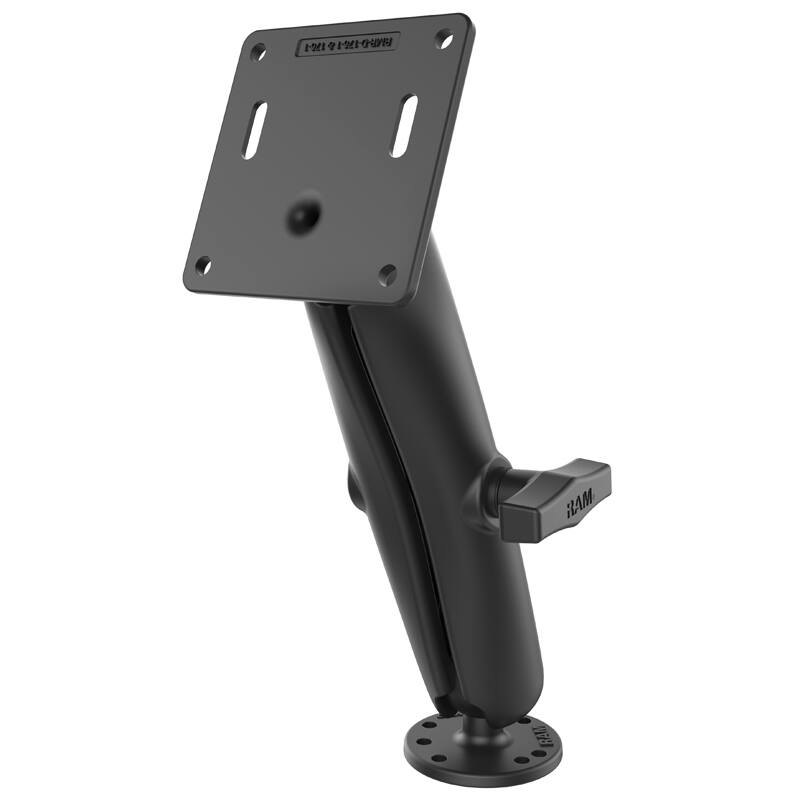

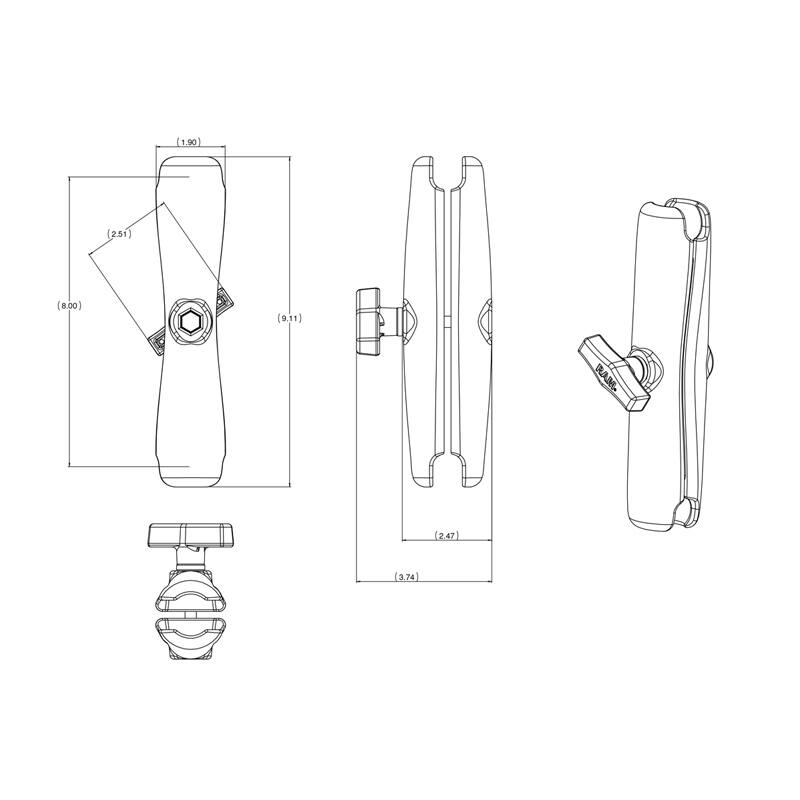

The RAM-VP-SW2F-8-2461 is the upper-pole workstation assembly that adds a monitor and keyboard to an existing Tele-Pole base or welded female base. It uses a 203mm (8") upper pole with a flange that comes out at 90 degrees from the top of the post, a 152mm (6") swing arm and a long C-size double socket arm with a 75x75mm VESA screen plate.
Key Features

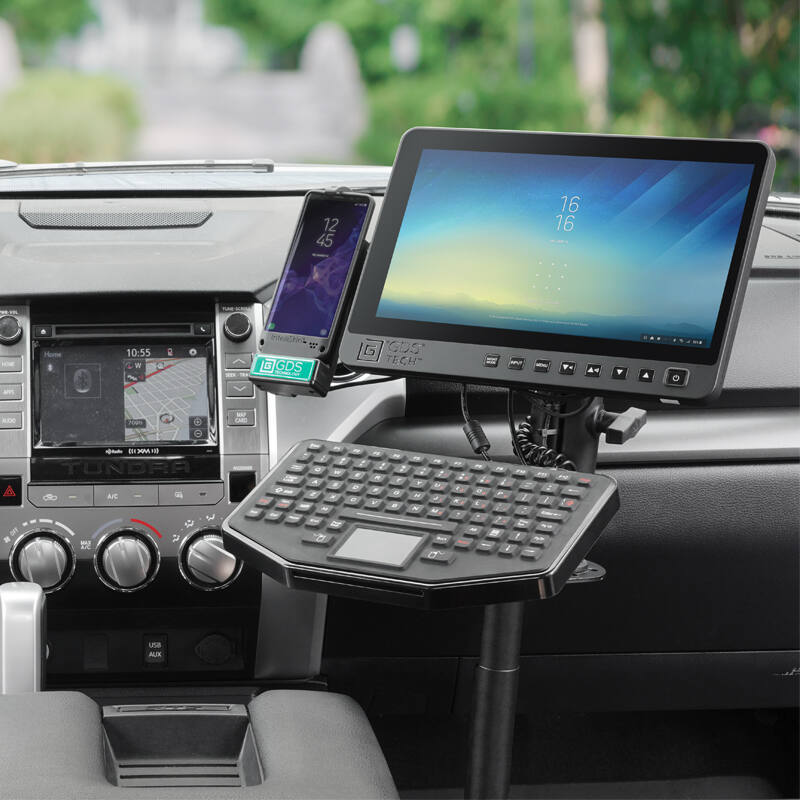

Adds a screen and keyboard to an existing Tele-Pole or welded female base

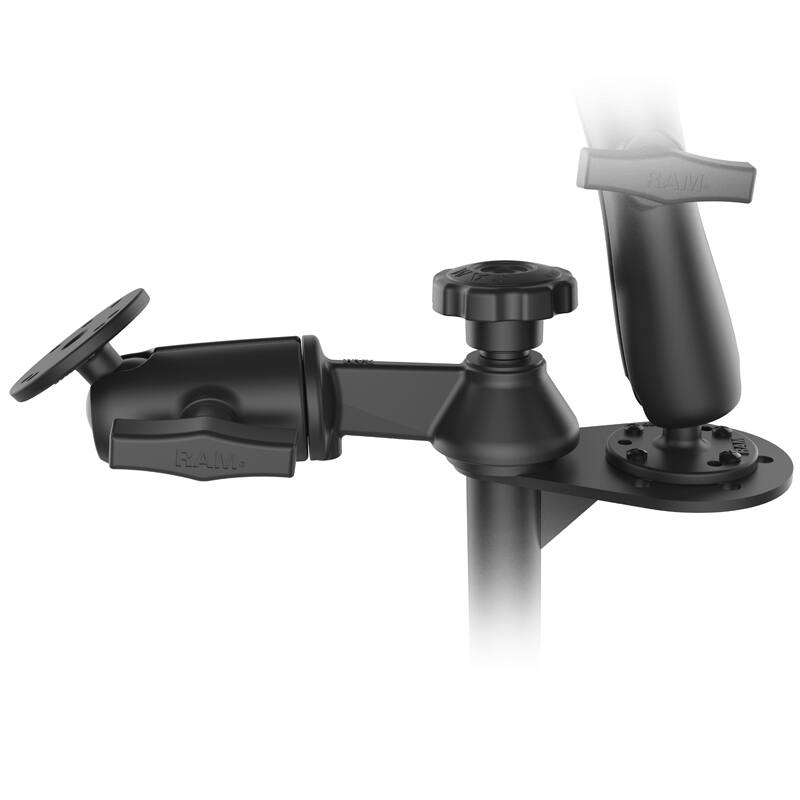

Flange comes out at 90 degrees from the top of the post; base rotates for the best viewing angle
92mm square 75x75mm VESA plate for the screen, plus a 63.5mm (2.5") round AMPS plate for RAM device holders

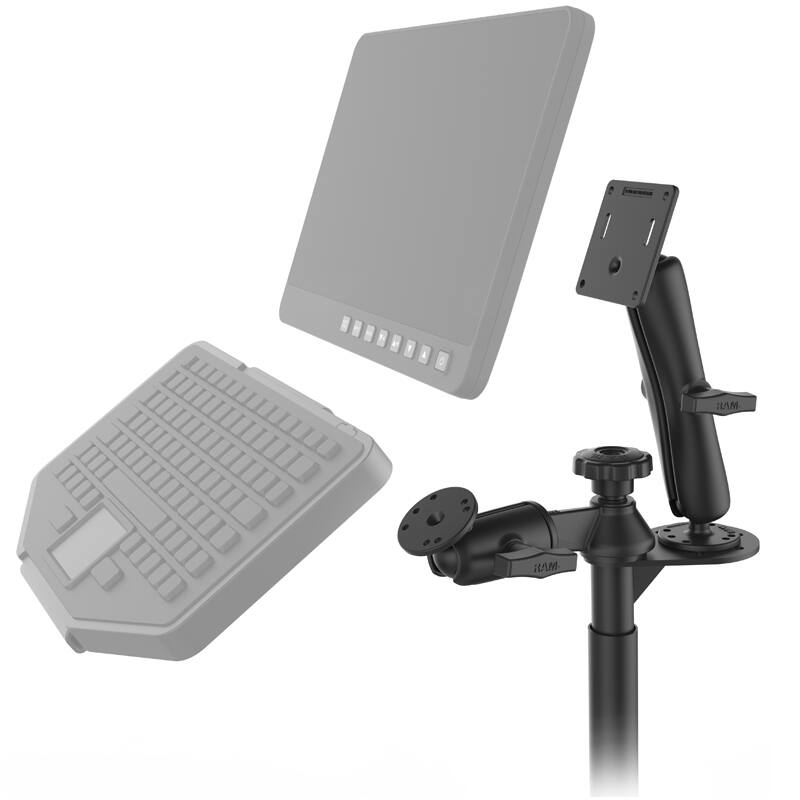

Also useful for mounting multiple screens or devices
C size 1.5" RAM ball-and-socket joints for near-infinite adjustment
Powder coated steel and marine-grade aluminium; lifetime warranty
Works With
RAM GDS View monitors and GDS Keyboards, plus any screen with a 75x75mm VESA pattern and any RAM holder with the AMPS pattern. Attaches to an existing Tele-Pole female base or welded vehicle base. Uses the RAM-2461U VESA plate. For complete mounts with a base pole see the RAM-VP-SW2F-45-2461 and RAM-VP-SW2F-89-2461.
Dimensions & Specifications
Upper pole with flange: 203mm (8")
Swing arm: 152mm (6")

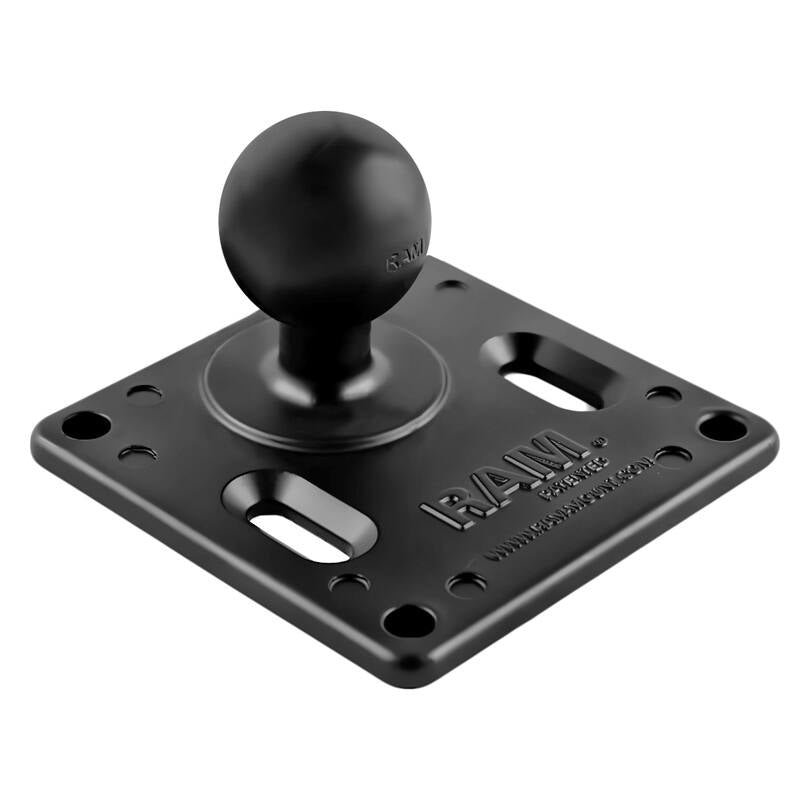

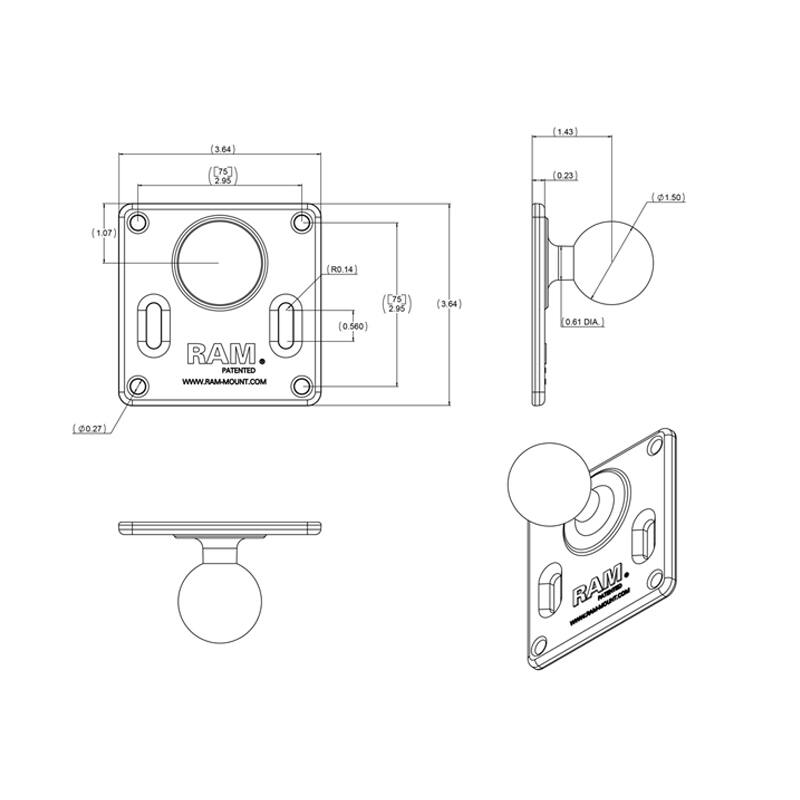

VESA plate: 92mm square, 75x75mm pattern

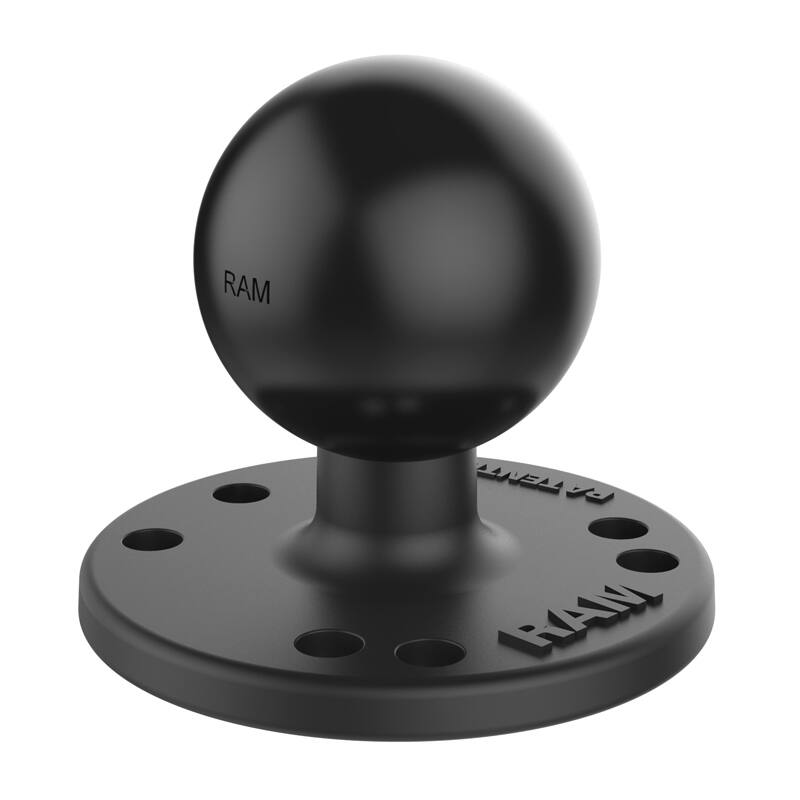

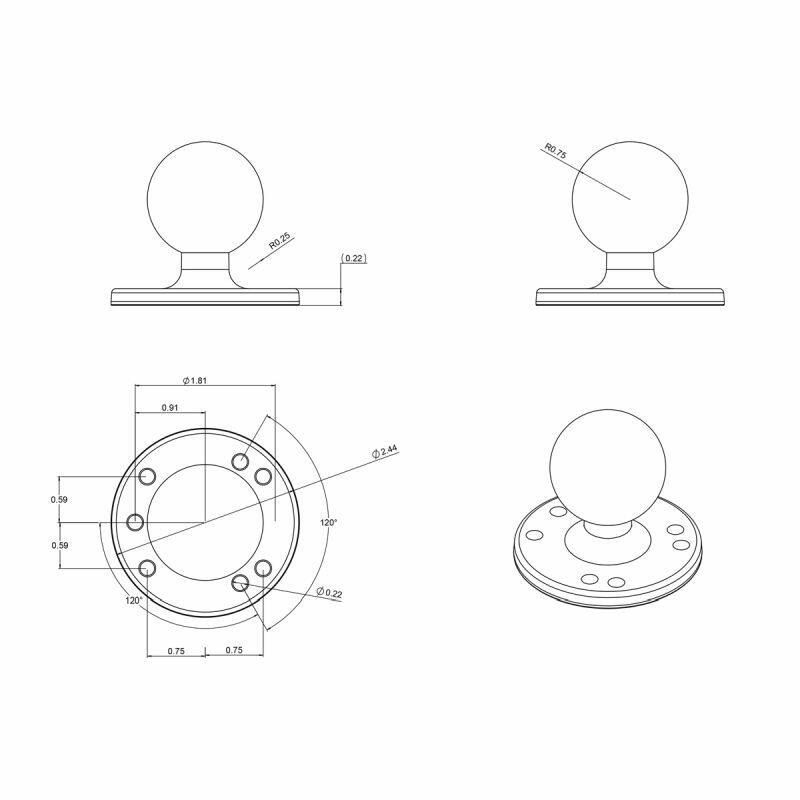

Round plate: 63.5mm (2.5"), AMPS pattern
Tele-Pole hole pattern: 66.7mm x 66.7mm (2.625" x 2.625")
Ball size: 1.5" (C size)
Hardware included: assembly hardware
Material: powder coated steel and marine-grade aluminium
Weight: 3.261kg (7.19 lb)
