RAM Adaptor - Double Ball - C Series (1.5" Balls)

RAM-230U RAM® Double Ball Adapter (C Size, 1.5" Ball)

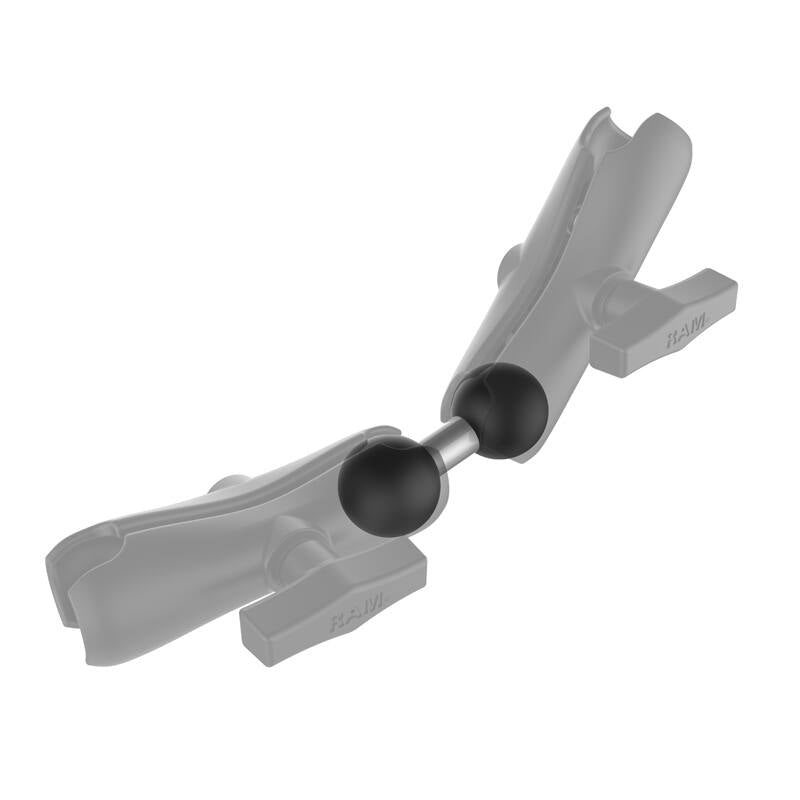

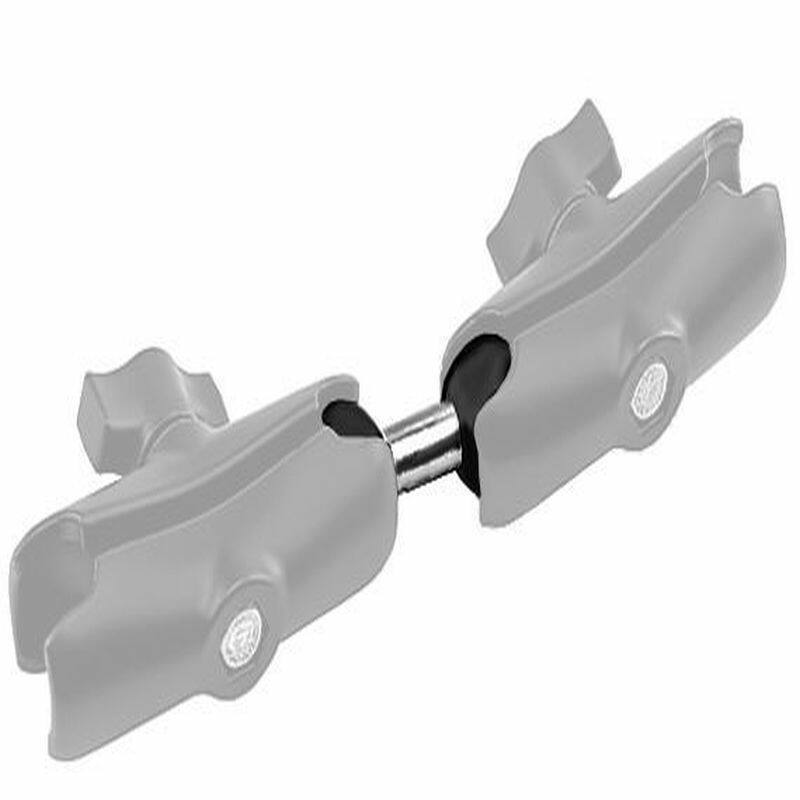

The RAM-230U is a double-ended ball adapter that joins two C size (1.5") RAM double socket arms together for extra reach or flexibility. It is ideal when you need more arm length, or another pivot point to get the perfect viewing position for your device. Join a short arm to a long one, two of the same size, whatever the job needs. Powder-coated marine-grade aluminium, lifetime warranty.

Key Features

• Connects two C size 1.5" socket arms for extra extension or articulation

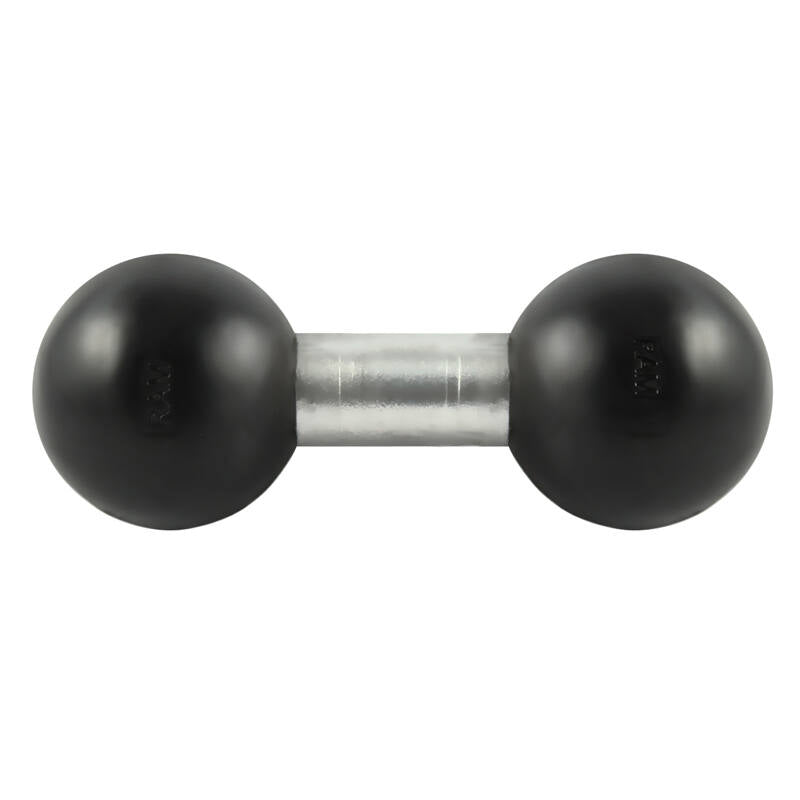

• Two 1.5" RAM rubber balls on a connecting post
• Mix and match arm lengths to suit your setup
• Powder-coated marine-grade aluminium for durability in demanding environments
• Backed by a lifetime warranty

Dimensions & Specifications

• Overall length: 95mm (3.74")
• Socket-to-socket length: 60.5mm (2.38")
• Ball size: 1.5" rubber C size ball (both ends)
• Material: powder-coated marine-grade aluminium
• Weight: 113 grams (0.25 lbs)

Weight Capacity

• Standard use: 1.81kg (4 lbs)
• Heavy-duty use: 1.36kg (3 lbs)

Also Available In

This adapter also comes in B size (1", RAM-B-230U) and D size (2.25", RAM-D-230U).

FAQs

Will my mount be just as stable if I add this to extend it?
No. Any time you make a mount longer or add another pivot point, you sacrifice some stability and may see more shake or vibration. It is a fair trade when you need the reach, just keep the arms as short as the job allows.

Can I get one with different size balls on each end?
Not in this part. The double ball adapters use the same ball size on both ends. If you need to step between sizes, the RAP-BC-201U converts from B to C series.

Is it in stock and how fast do you ship?
When this shows as in stock, it is dispatched within one business day. If it is showing out of stock, get in touch and we will give you a lead time.

Is there a product video?
Yes, you can watch the double ball adapter in action on YouTube.
