RAM Double Socket Arm - E Series (3.38" Balls) - Medium length 321mm

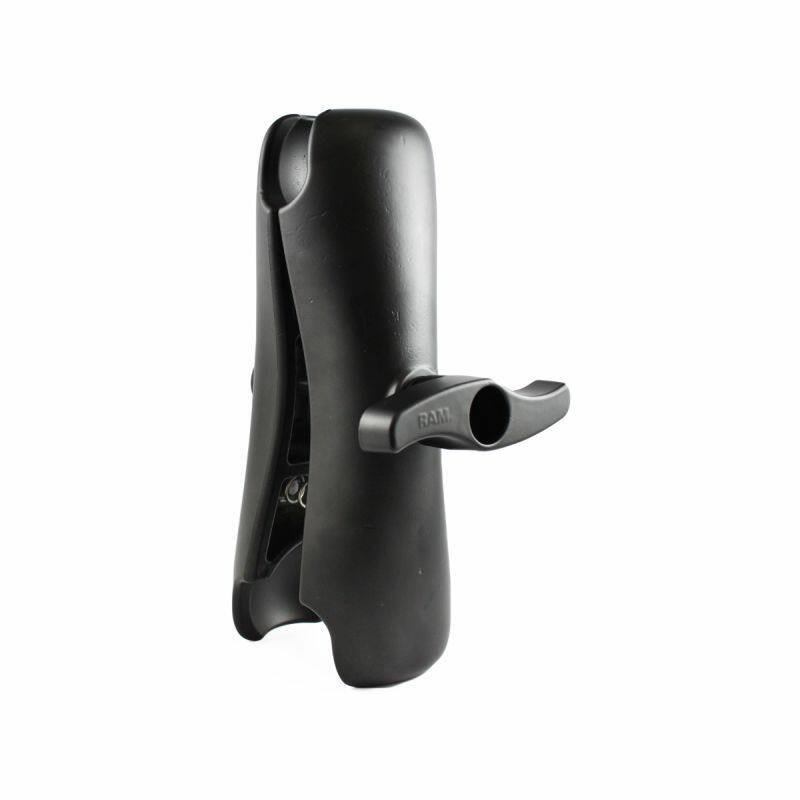

RAM-E-201U RAM® Double Socket Arm – E Size Medium

The RAM-E-201U is the medium arm in RAM's E Series (3.38") double socket range, connecting two 3.38" E Size RAM® ball components for super heavy-duty mounting. The E Series is RAM's largest, strongest arm size, built for big loads in the most demanding environments.

Key Features

• Medium-length double socket arm (321mm overall)
• Attaches to any E Size RAM® ball component, including mounting bases and device holders
• Double ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

A single spring inside the arm opens the end sockets, letting you pivot each ball-and-socket connection for almost infinite adjustment and the perfect viewing angle.

Dimensions & Specifications

• Overall length: 320.7mm (12.625")
• Socket-to-socket length: 250.8mm (9.875")
• Material: powder-coated marine-grade aluminium
• Ball size: 3.38" (85.5mm) E Series rubber ball
• Weight: 3.56kg (7.85 lbs)
• Weight capacity: 6.8kg (15 lbs) standard use, 4.54kg (10 lbs) heavy-duty use

Also Available In

This arm also comes in a short length (RAM-E-201U-D, 186mm).

Installation Video

Watch on YouTube
