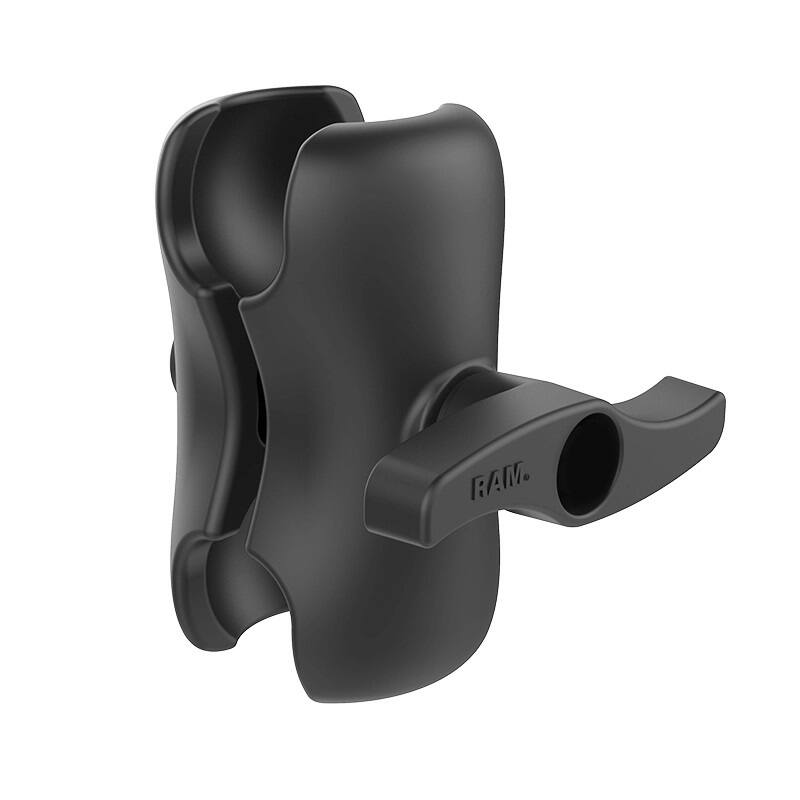

RAM-E-201U-D RAM® Double Socket Arm – E Size Short
The RAM-E-201U-D is the short arm in RAM's E Series (3.38") double socket range, connecting two 3.38" E Size RAM® ball components in a 186mm length. The E Series is RAM's largest, strongest arm size; this short version keeps heavy loads held in close with minimal overhang.
Key Features
- Short double socket arm (186mm overall)
- Attaches to any E Size RAM® ball component, including mounting bases and device holders
- Double ball-and-socket technology allows near-infinite adjustability
- Powder-coated, marine-grade aluminium construction
- Backed by RAM Mounts' lifetime warranty
A single spring inside the arm opens the end sockets, letting you pivot each ball-and-socket connection for almost infinite adjustment and the perfect viewing angle.
Dimensions & Specifications
- Overall length: 185.7mm (7.31")
- Socket-to-socket length: 126.4mm (4.975")
- Material: powder-coated marine-grade aluminium
- Ball size: 3.38" (85.5mm) E Series rubber ball
- Weight: 2.0kg (4.4 lbs)
- Weight capacity: 6.8kg (15 lbs) standard use, 4.54kg (10 lbs) heavy-duty use
Also Available In
This arm also comes in a medium length (RAM-E-201U, 321mm).
