RAM Square VESA Base Plate - 120mm square - C Size 1.5" Ball - No Spacers

RAM-246-AD1U RAM® 100x100mm VESA Base Plate with C Size Ball (No Spacers)

The RAM-246-AD1U is a 120mm (4.75") square VESA base plate with a C size 1.5" rubber ball. It carries 100x100mm, 75x75mm and 100x50mm half-VESA hole patterns and connects to any C size RAM double socket arm. It is the same plate as the RAM-246U but is supplied without the shoulder washers.

Key Features

• 120mm square plate with 100x100mm, 75x75mm and 100x50mm half-VESA hole patterns
• C size 1.5" RAM rubber ball connects to any C size RAM double socket arm
• RAM ball-and-socket design gives near-infinite adjustability
• Powder coated, marine-grade aluminium for demanding environments
• Supplied without shoulder washers
• Backed by a lifetime warranty

Works With

Any C size (1.5") RAM double socket arm, and any device or display carrying a 100x100mm, 75x75mm or 100x50mm VESA pattern. If you want the version that includes the four shoulder washers, see the RAM-246U.

Dimensions & Specifications

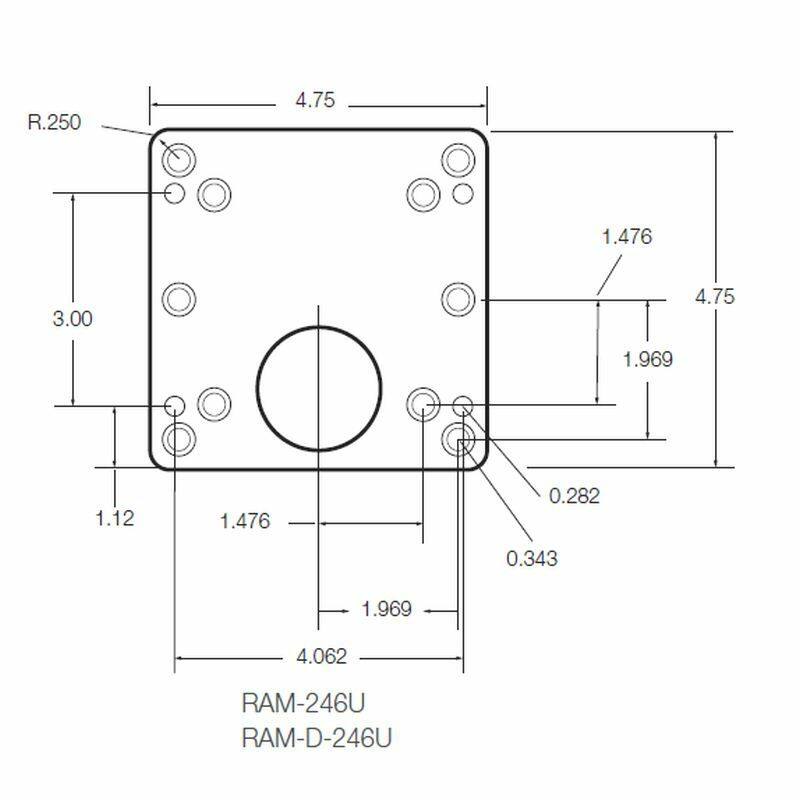

• Plate size: 120.65 x 120.65mm (4.75" x 4.75")
• Hole patterns: 100x100mm VESA, 75x75mm VESA, 100x50mm half-VESA
• Ball size: 1.5" (C size)
• Material: powder coated marine-grade aluminium
• Weight: 290g (0.64 lb)
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use

Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
