RAM Square VESA Base Plate - 100 & 75mm VESA pattern - C Size 1.5" Ball

RAM-246U RAM® 100x100mm VESA Base Plate with C Size Ball

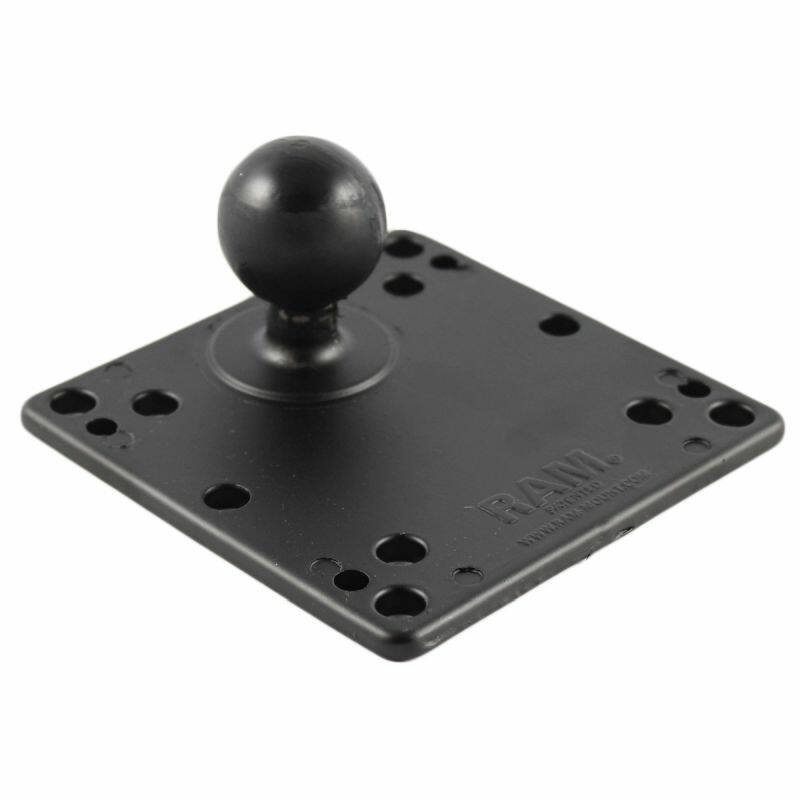

The RAM-246U is a 120mm (4.75") square VESA base plate fitted with a C size 1.5" rubber ball. It carries 100x100mm, 75x75mm and 100x50mm half-VESA hole patterns, so it bolts to a wide range of monitors, displays and device cradles, then connects to any C size RAM double socket arm for near-infinite adjustment.

Key Features

• 120mm square plate with 100x100mm, 75x75mm and 100x50mm half-VESA hole patterns
• C size 1.5" RAM rubber ball connects to any C size RAM double socket arm
• RAM ball-and-socket design gives near-infinite adjustability
• Powder coated, marine-grade aluminium for demanding environments

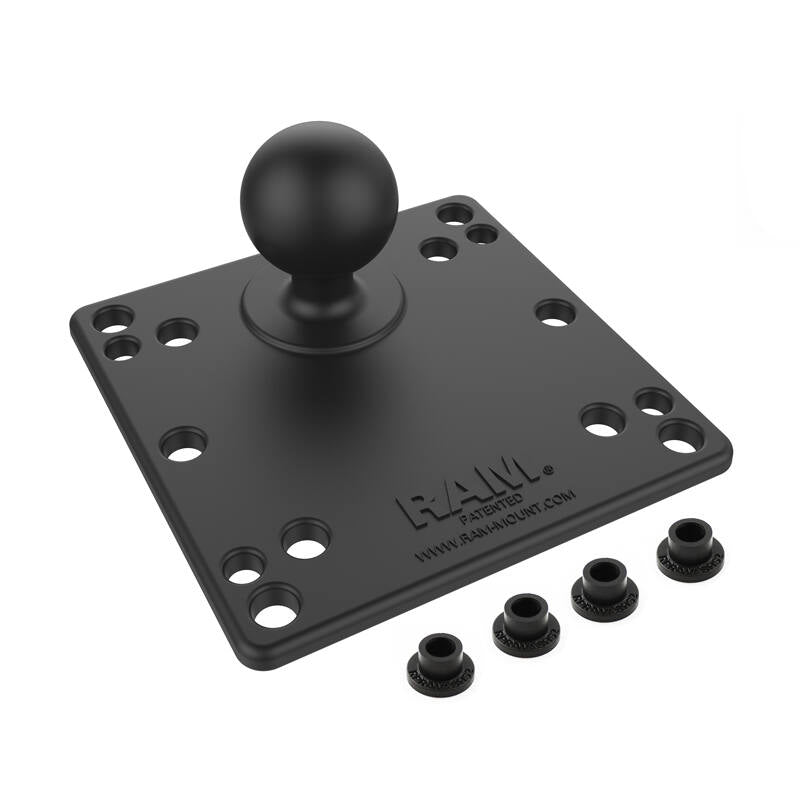

• Four shoulder washers included for use with smaller screws
• Backed by a lifetime warranty

Works With

Any C size (1.5") RAM double socket arm, and any device or display carrying a 100x100mm, 75x75mm or 100x50mm VESA pattern. Need the same plate without the shoulder washers? See the RAM-246-AD1U. For a larger ball, see the D size RAM-D-246U and E size RAM-E-246U.

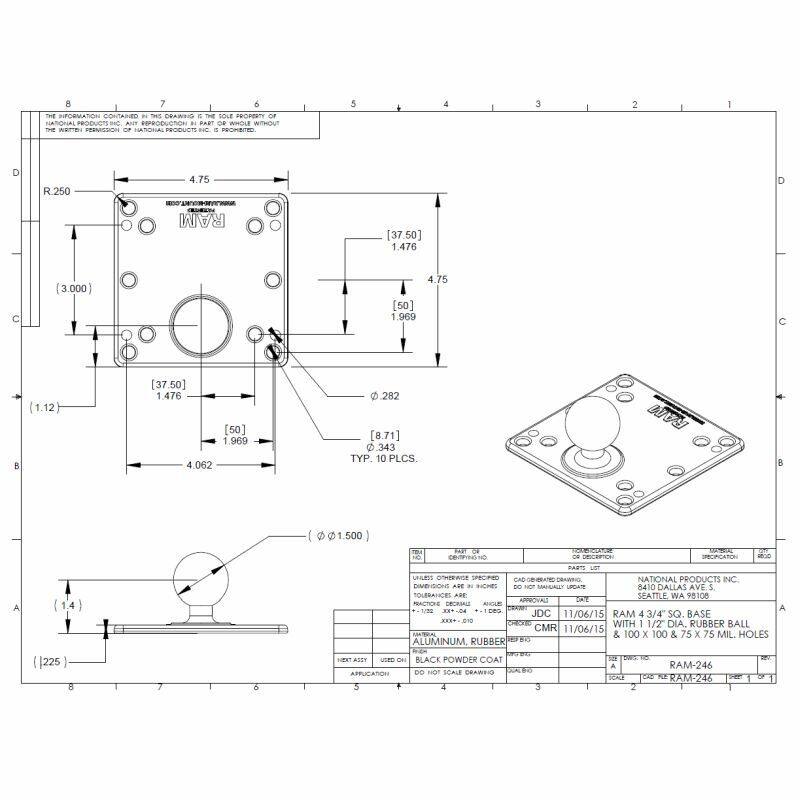

Dimensions & Specifications

• Plate size: 120.65 x 120.65mm (4.75" x 4.75")

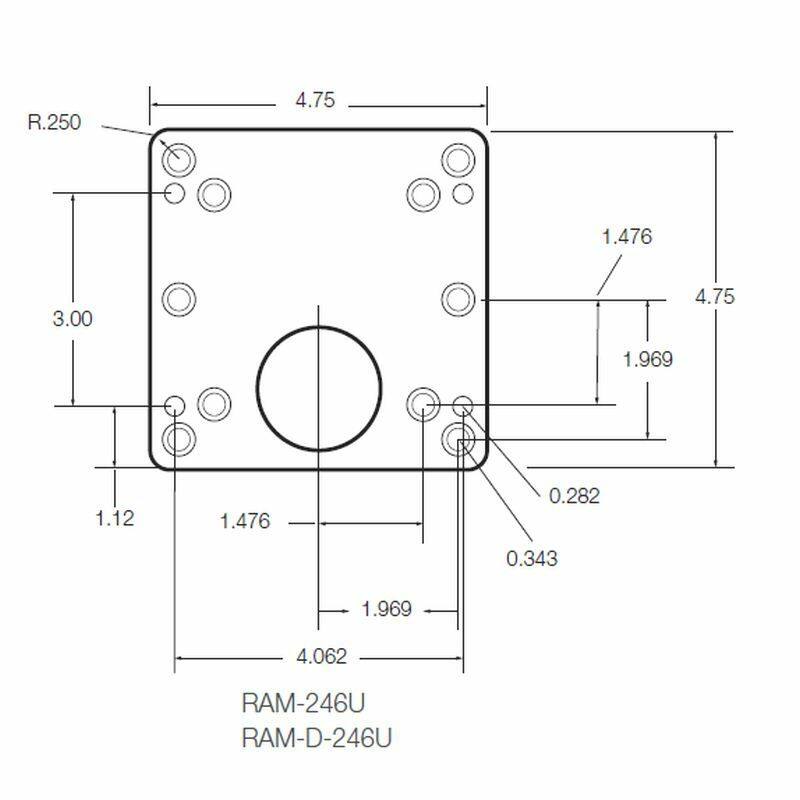

• Hole patterns: 100x100mm VESA, 75x75mm VESA, 100x50mm half-VESA
• Ball size: 1.5" (C size)
• Hardware included: (4) .312" x .187" shoulder washers
• Material: powder coated marine-grade aluminium
• Weight: 290g (0.64 lb)
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use

FAQs

What are the four shoulder washers for? They let you use smaller screws with the plate's holes. If a screw head is small enough to pull through the larger plate hole, the washer fills the gap and stops it stripping through. They can be used with any of the plate's holes.
