RAM Square 100mm VESA Base Plate - E Size 3.38" Ball

RAM-E-246U RAM® 100x100mm VESA Base Plate with E Size Ball

The RAM-E-246U is a 120.6mm (4.75") square VESA base plate fitted with a heavy-duty E size 3.38" rubber ball. It carries 100x100mm and 75x75mm VESA hole patterns for larger monitors and displays, and connects to any E size RAM double socket arm for near-infinite adjustment.

Key Features

• 120.6mm square plate with 100x100mm and 75x75mm VESA hole patterns
• E size 3.38" (85.5mm) RAM rubber ball connects to any E size RAM double socket arm
• RAM ball-and-socket design gives near-infinite adjustability
• Powder coated, marine-grade aluminium for demanding environments
• Four shoulder washers included for use with smaller screws
• Backed by a lifetime warranty

Works With

Any E size (3.38") RAM double socket arm, and larger devices or displays carrying a 100x100mm or 75x75mm VESA pattern. For a steel-reinforced version of this plate see the RAM-E-246U-IN1. Smaller-ball options: C size RAM-246U and D size RAM-D-246U.

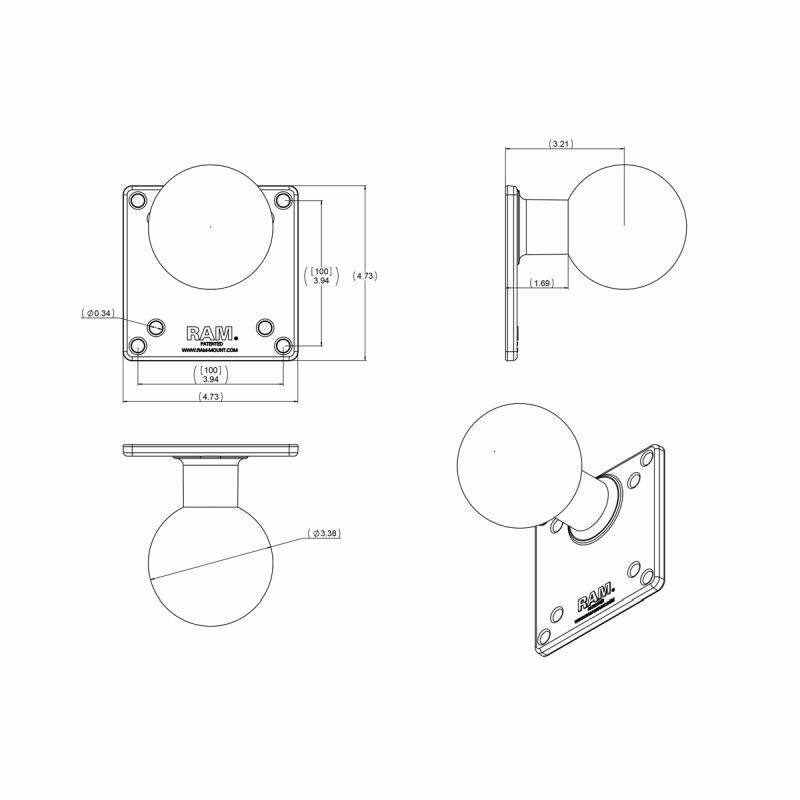

Dimensions & Specifications

• Plate size: 120.6 x 120.6mm (4.75" x 4.75")
• Hole patterns: 100x100mm VESA, 75x75mm VESA
• Ball size: 3.38" / 85.5mm (E size)
• Hardware included: (4) .312" x .187" shoulder washers
• Material: powder coated marine-grade aluminium
• Weight: 879g (1.94 lb)
• Weight capacity: 6.8kg (15 lb) standard use, 4.53kg (10 lb) heavy-duty use
