RAM Square 100mm VESA Base Plate - E Size 3.38" Ball - reinforced

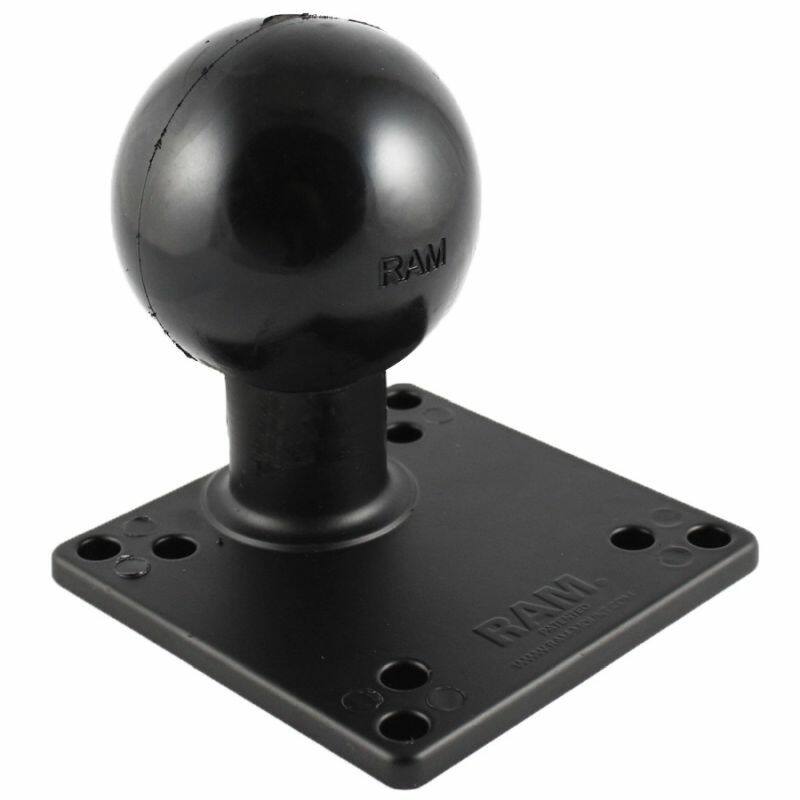

RAM-E-246U-IN1 RAM® Steel-Reinforced 100x100mm VESA Base Plate with E Size Ball

The RAM-E-246U-IN1 is a steel-reinforced version of the E size VESA base plate. A steel screw built into the plate structure adds strength for the most demanding loads, while the plate still carries 100x100mm and 75x75mm VESA patterns and an E size 3.38" rubber ball.

Key Features

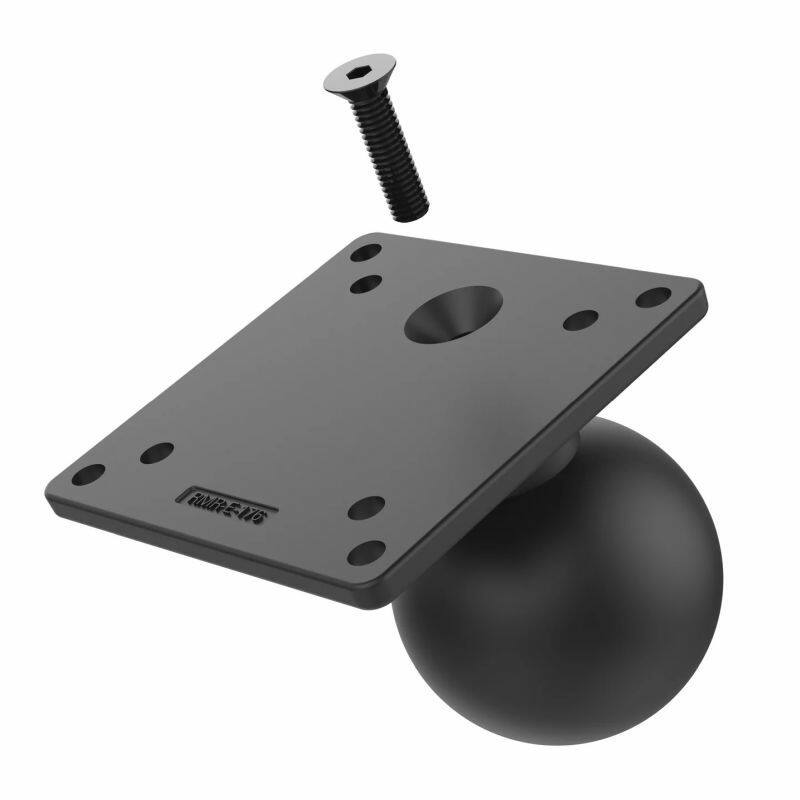

• Steel screw integrated into the plate for added structural integrity
• 120.6mm square plate with 100x100mm and 75x75mm VESA hole patterns
• E size 3.38" (85.5mm) RAM rubber ball connects to any E size RAM double socket arm
• RAM ball-and-socket design gives near-infinite adjustability
• Powder coated, marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

Any E size (3.38") RAM double socket arm, and larger devices or displays carrying a 100x100mm or 75x75mm VESA pattern. For the standard (non-reinforced) version see the RAM-E-246U.

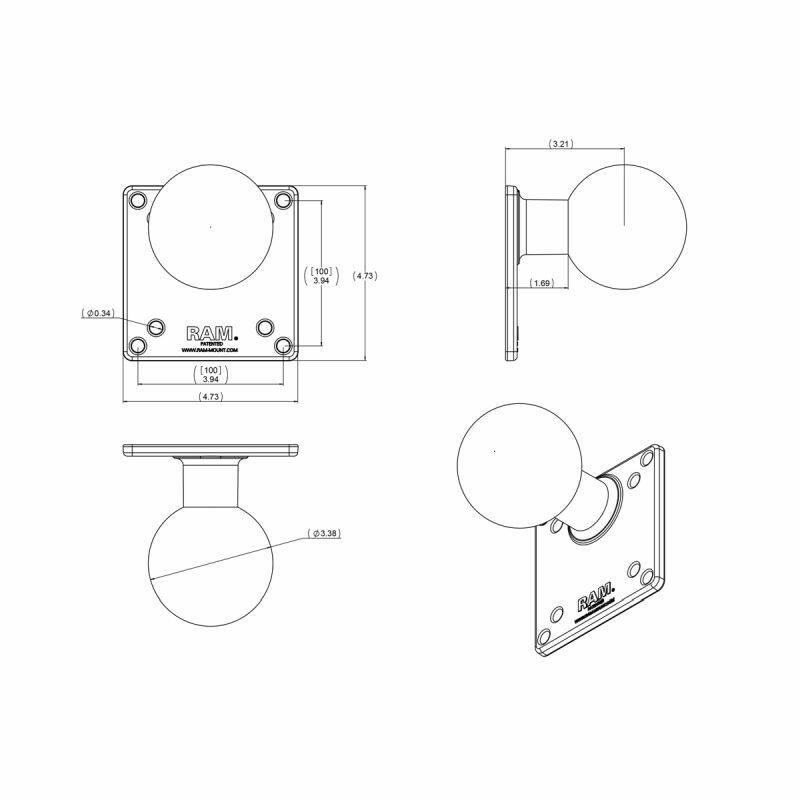

Dimensions & Specifications

• Plate size: 120.6 x 120.6mm (4.75" x 4.75")
• Hole patterns: 100x100mm VESA, 75x75mm VESA
• Ball size: 3.38" / 85.5mm (E size)
• Construction: marine-grade aluminium, steel reinforced
• Material: powder coated marine-grade aluminium
• Weight: 921g (2.03 lb)
• Weight capacity: 6.8kg (15 lb) standard use, 4.53kg (10 lb) heavy-duty use

FAQs

How is this different from the RAM-E-246U? The IN1 adds a steel screw into the body of the VESA plate to boost structural integrity. That reinforcement is why it weighs slightly more than the standard RAM-E-246U.
