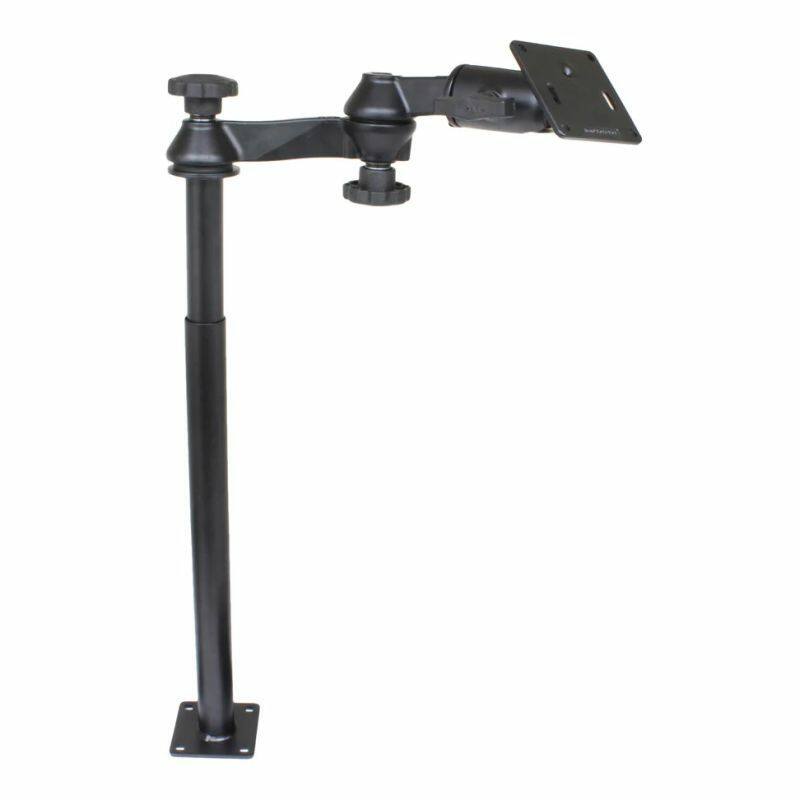

RAM-VP-SW1-1218-2461 RAM® Tele-Pole™ Swing-Arm Mount with 18" Lower & 18" Upper Poles and 75x75mm VESA Plate
The RAM-VP-SW1-1218-2461 is a height-adjustable telescoping mount for a 75mm VESA screen. An 18" lower female Tele-Pole and a 12" upper male Tele-Pole adjust from 566mm to 871mm by turning the knob at the top, and a 305mm (12") double swing arm lets you twist and tilt the screen to almost any position.
Key Features
Telescoping pole adjusts in height, then locks rigid with the knob at the top of the post
305mm (12") double swing arm twists and tilts the screen to suit
92mm square base plate with a 75x75mm VESA pattern; base rotates for the best angle
Lower female pole fits RAM vehicle bases that do not already have a welded female Tele-Pole
C size 1.5" RAM ball-and-socket joint for near-infinite adjustment
Powder coated steel and marine-grade aluminium; lifetime warranty
Works With
Any screen with a 75x75mm VESA pattern, on a RAM vehicle base without a welded female Tele-Pole. Uses the RAM-2461U VESA plate. For shorter combinations see the RAM-VP-SW1-812-2461 and RAM-VP-SW1-818-2461.
Dimensions & Specifications

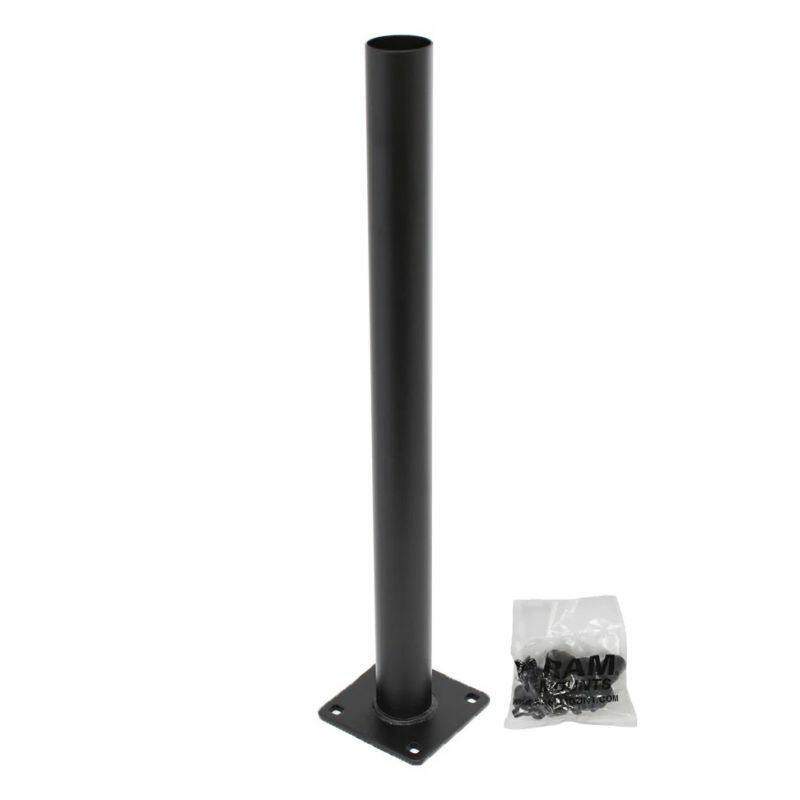

Lower female pole: 18"; upper male pole: 12"
Height range: 566mm (22.3") to 871mm (34.3")

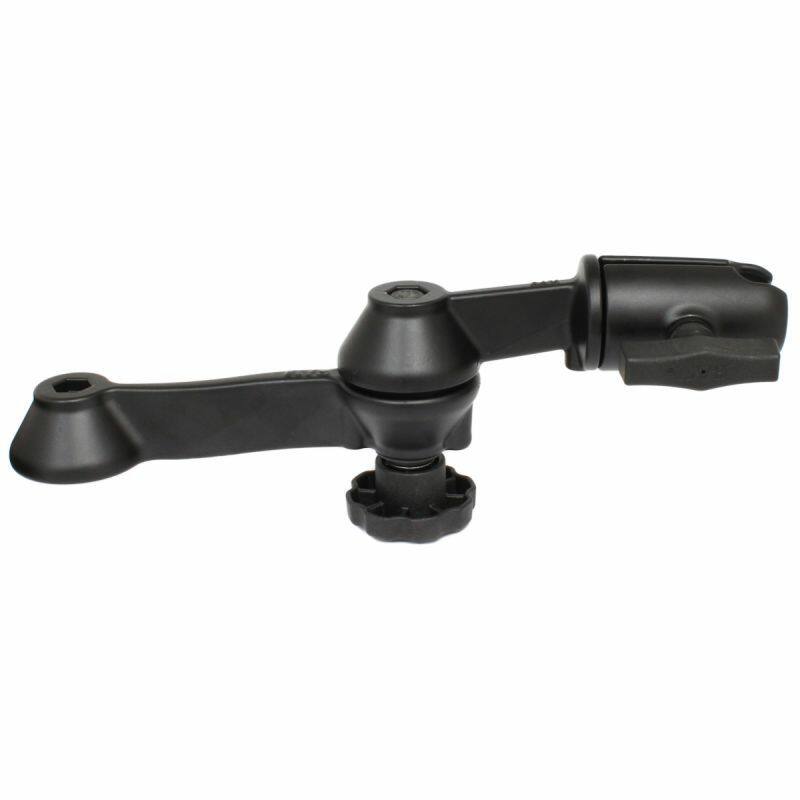

Double swing arm: 305mm (12")

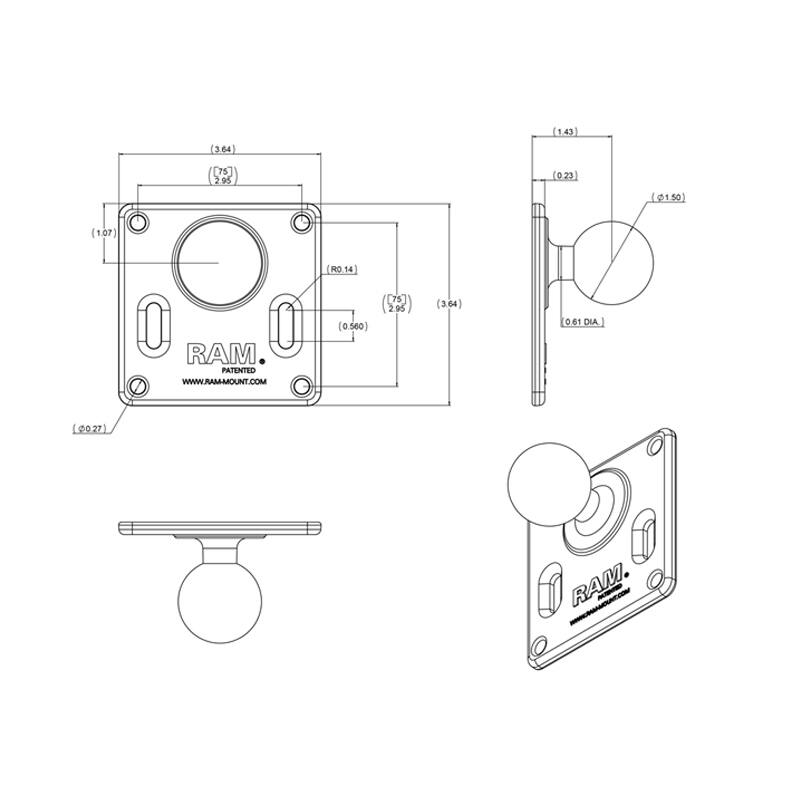

VESA plate: 92mm square (3.625" x 3.625"), 75x75mm pattern
Lower pole base: 89mm x 89mm (3.5" x 3.5")
Tele-Pole hole pattern: 66.7mm x 66.7mm (2.625" x 2.625")
Ball size: 1.5" (C size)
Material: powder coated steel and marine-grade aluminium
Weight: 3.42kg (7.55 lb)
Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
