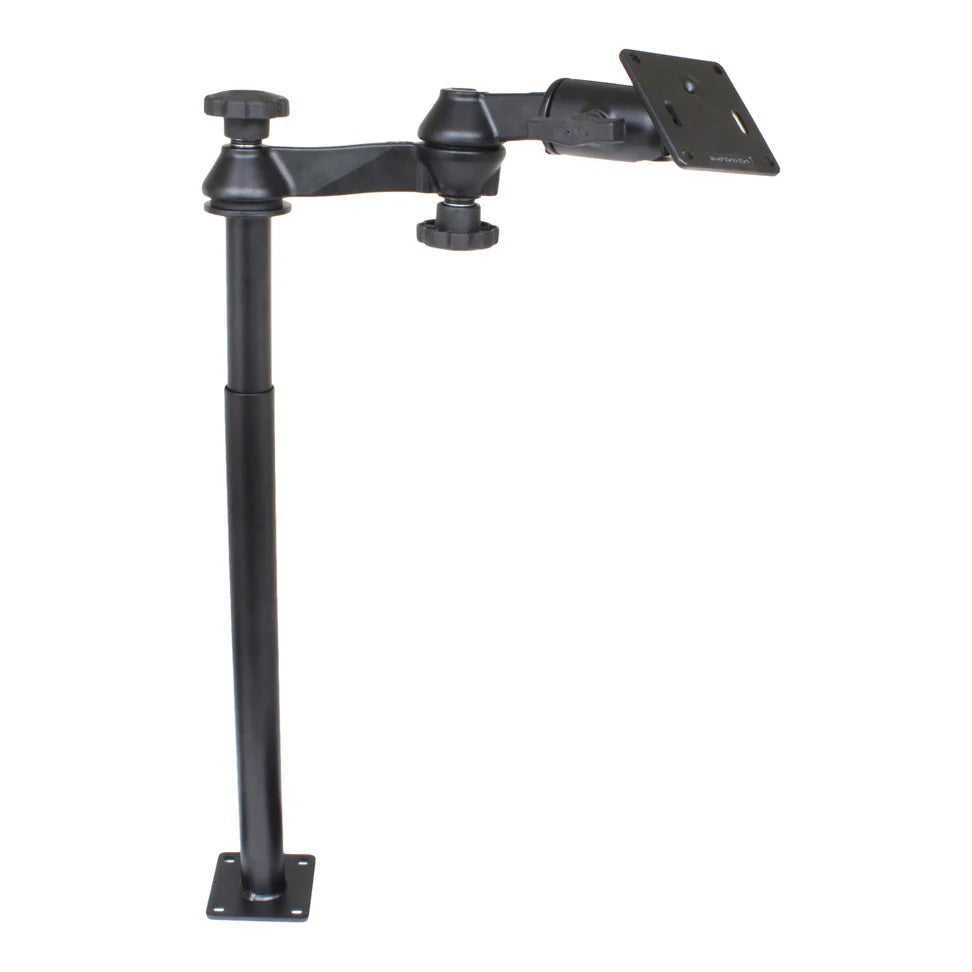

RAM Tele-Pole with 18" lower and 8" Upper Poles, Swing arms and 75x75mm VESA Plate

RAM-VP-SW1-818-2461 RAM® Tele-Pole™ Swing-Arm Mount with 8" & 18" Poles and 75x75mm VESA Plate

The RAM-VP-SW1-818-2461 is a height-adjustable telescoping mount for a 75mm VESA screen. An 18" lower female Tele-Pole and an 8" upper male Tele-Pole adjust in height by turning the knob at the top, and a 305mm (12") double swing arm lets you twist and tilt the screen to almost any position. The taller lower pole suits setups that need more standing height than the 12" version.

Key Features

• Telescoping pole adjusts in height, then locks rigid with the knob at the top of the post
• 305mm (12") double swing arm twists and tilts the screen to suit
• 92mm square base plate with a 75x75mm VESA pattern; base rotates for the best angle
• Lower female pole fits RAM vehicle bases that do not already have a welded female Tele-Pole
• C size 1.5" RAM ball-and-socket joint for near-infinite adjustment
• Powder coated steel and marine-grade aluminium; lifetime warranty

Works With

Any screen with a 75x75mm VESA pattern, on a RAM vehicle base without a welded female Tele-Pole. Uses the RAM-2461U VESA plate. For a shorter lower pole see the RAM-VP-SW1-812-2461; for a longer upper pole see the RAM-VP-SW1-1218-2461.

Dimensions & Specifications

• Lower female pole: 18"; upper male pole: 8"
• Double swing arm: 305mm (12")
• VESA plate: 92mm square (3.625" x 3.625"), 75x75mm pattern
• Lower pole base: 89mm x 89mm (3.5" x 3.5")
• Tele-Pole hole pattern: 66.7mm x 66.7mm (2.625" x 2.625")
• Ball size: 1.5" (C size)
• Hardware included: (4) 5/16"-18 x 1" carriage bolts, (4) 5/16"-18 hex nuts, (4) 5/16" flat washers, (4) 5/16" split lock washers, (4) rubber caps
• Material: powder coated steel and marine-grade aluminium

What's Included

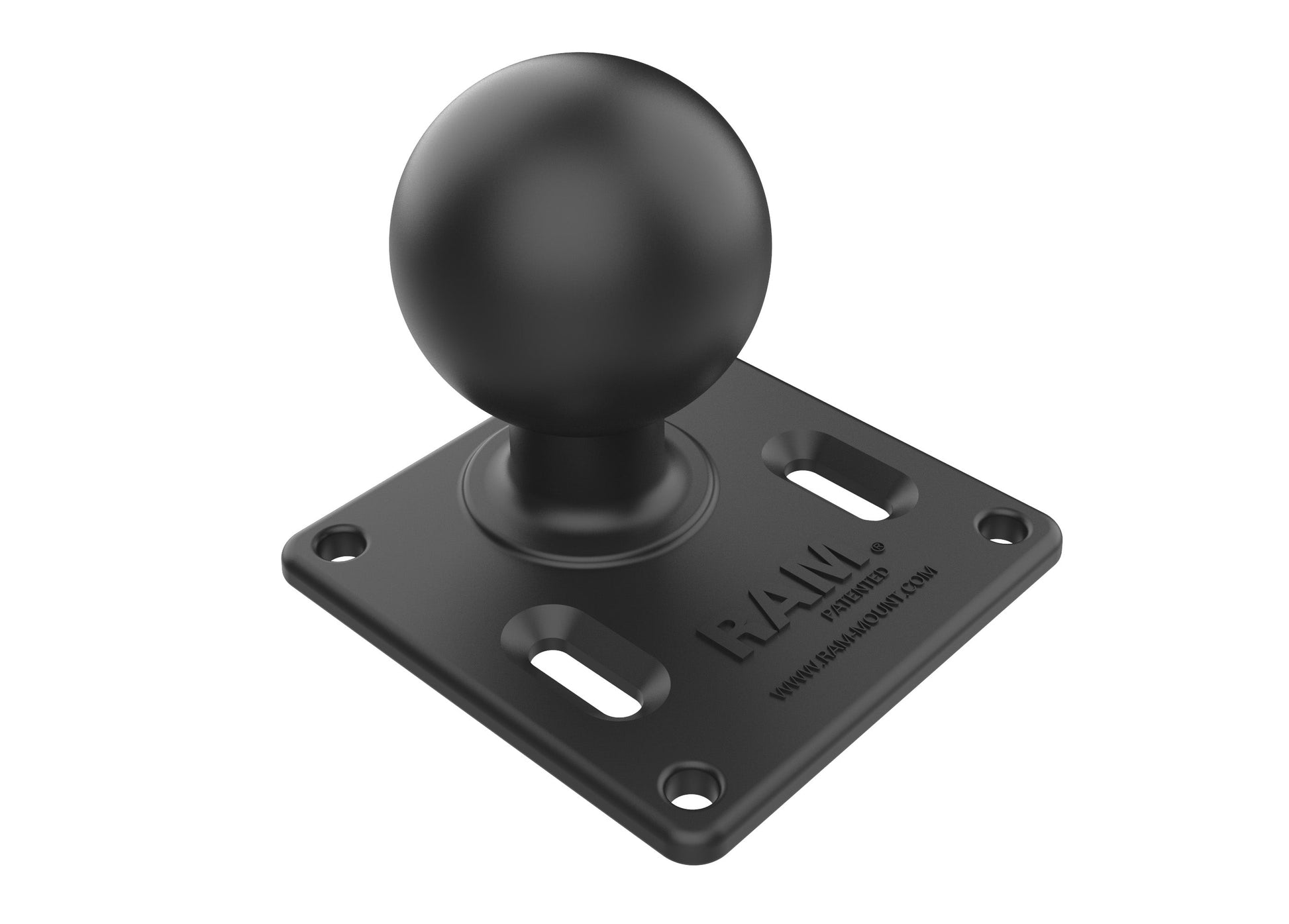

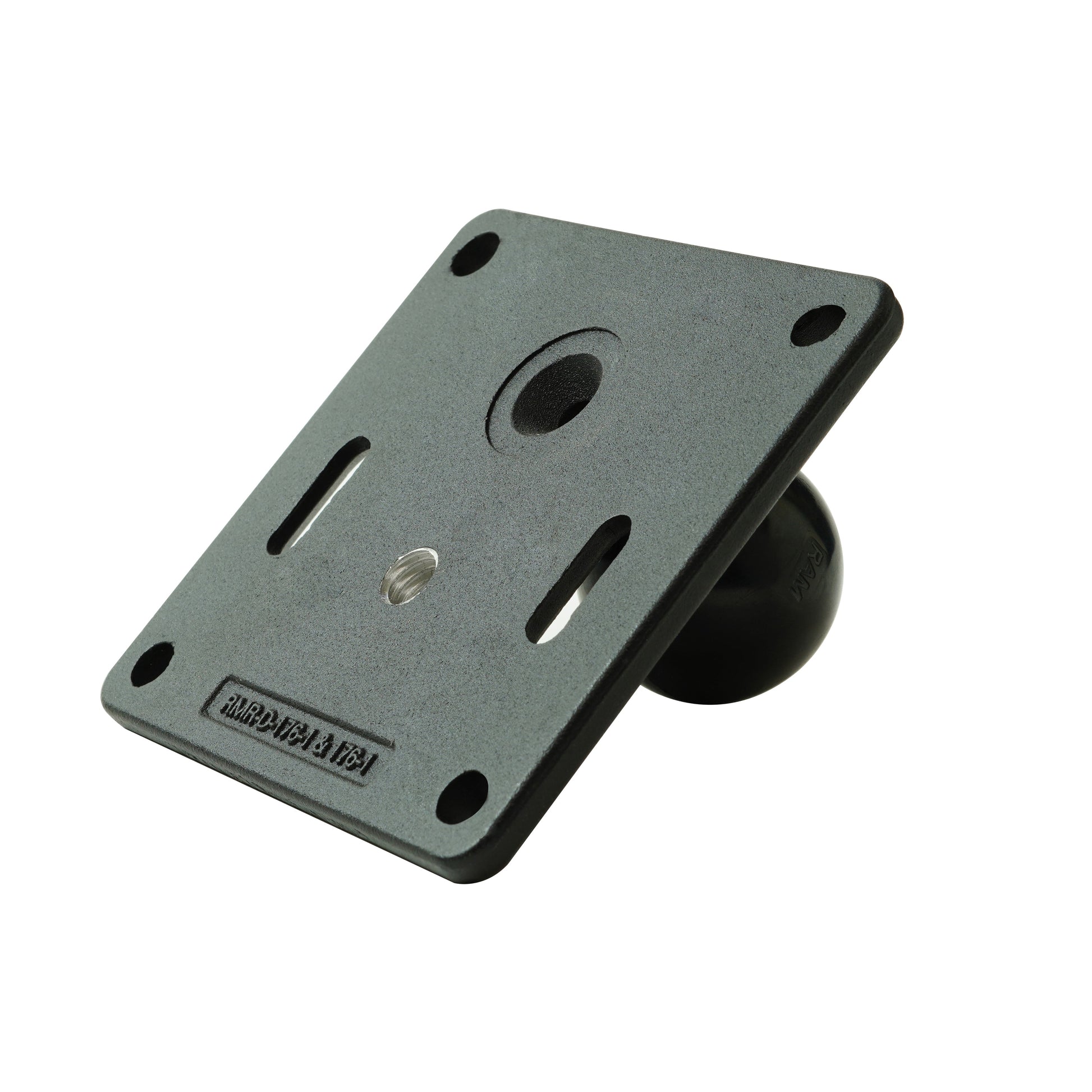

• RAM-2461U 75x75mm VESA plate

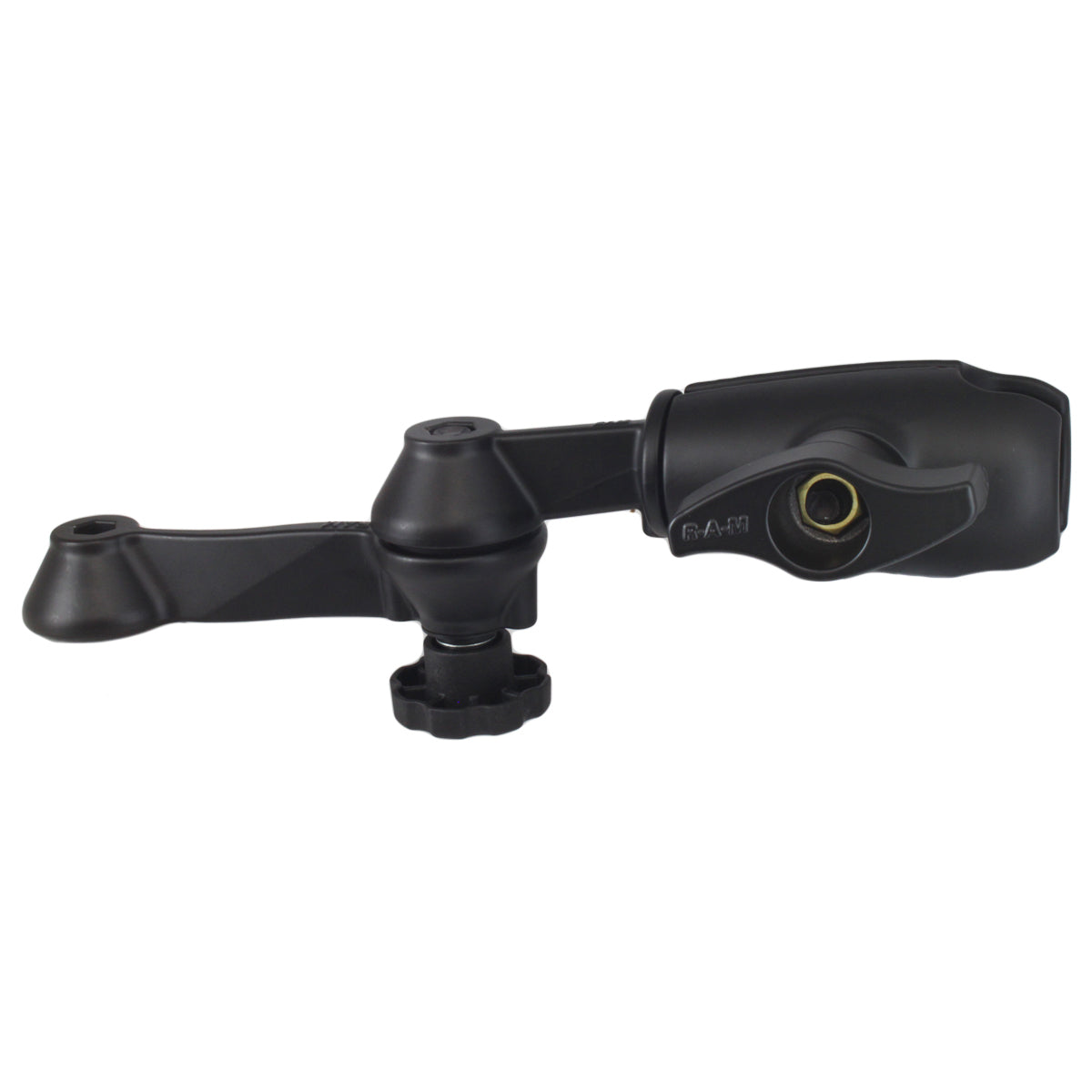

• RAM-VB-110-1NBU double swing arm
• RAM-VP-TBF18U 18" female lower Tele-Pole base
• RAM-VP-TTM8U 203mm (8") male upper Tele-Pole
